In industrial production facilities, pump systems form the heart of process flow. Pumps play a critical role in transferring water, chemicals, oil and various industrial fluids, but when wrongly selected, they lead to wasted energy, frequent breakdowns and production losses. Industrial pump selectionis not just a matter of flow rate and pressure calculation; it requires evaluating multiple parameters together, such as material compatibility, system integration, maintenance accessibility and energy efficiency.
In this guide, we will cover the industrial pump selection process from start to finish, compare pump types, examine system integration principles and share ways to extend pump service life through maintenance strategies. By offering practical information for factory managers, maintenance engineers and procurement professionals, the right pump selectionreduces total cost of ownership.

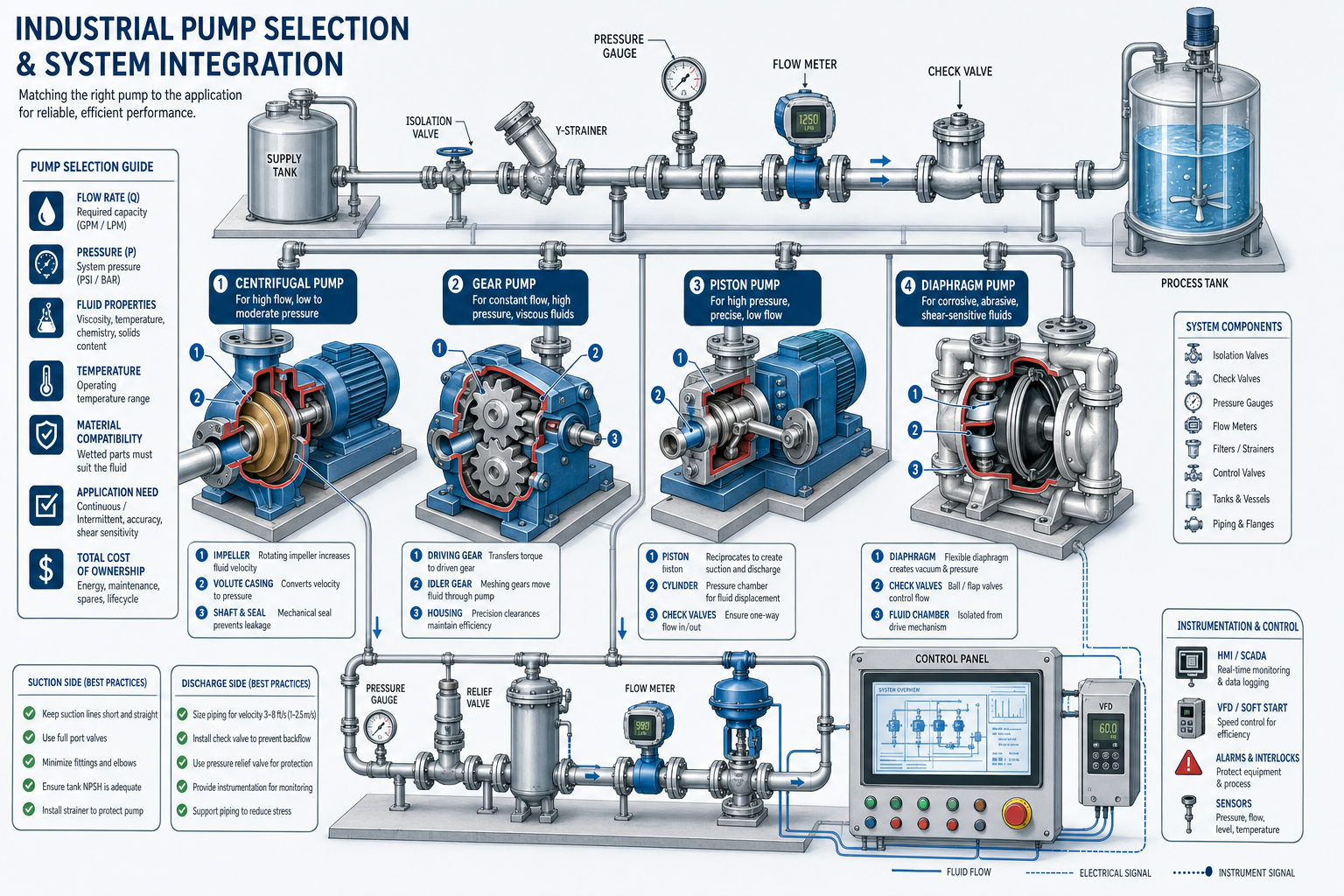

Industrial Pump Types and Classification
Industrial pumps are divided into two main groups according to their operating principles: centrifugal pumps (fluid transfer via kinetic energy) and positive displacement pumps (fluid transfer via volumetric displacement). Each group has its own distinct advantages, limitations and application areas. The first step in selecting the right pump is understanding this classification.
Centrifugal Pumps: Structure and Operating Principle
Centrifugal pumps impart kinetic energy to the fluid via a rotating impeller and convert this energy into pressure energy. They are the most common pump type in industrial applications because they provide high flow rates, produce continuous flow and require relatively little maintenance. Industrial pump selection When doing so, the main areas where centrifugal pumps come to the fore are as follows:
- Cooling water systems: Ideal for high flow rate and low-to-medium pressure requirements
- Fire-fighting systems: Capacity to deliver high flow in emergencies
- Water treatment plants: Energy efficiency in large-volume water transfer
- HVAC applications: As a circulation pump in heating and cooling circuits
- Chemical processes: Preferred for transferring low-viscosity liquids
The greatest advantage of centrifugal pumps is that their operating point can be varied over a wide range. However, since their performance drops with high-viscosity liquids, for this type of application pneumatic systems or positive displacement alternatives should be considered.
Positive Displacement Pumps
Positive displacement pumps transfer liquid by trapping and forcing a fixed volume with each rotation or stroke. This characteristic makes them superior to centrifugal pumps in high-pressure and high-viscosity applications. Their main sub-types are as follows:
Gear Pumps
Gear pumps, which transfer liquid by compressing it between meshing gear pairs, are widely used in lubrication systems, hydraulic power units and adhesive transfer. They deliver a constant flow rate even with high-viscosity liquids and generate high pressure at low speed. Hydraulic power units integration is of critical importance.
Piston Pumps
Piston pumps compress liquid by means of a piston moving back and forth. They are preferred in applications requiring very high pressure (200 bar and above), and are widely used in water-jet cutting systems, high-pressure cleaning equipment and oil-well injection systems. Piston pumps require more maintenance than gear pumps, but their pressure capacity is unmatched.
Diaphragm Pumps
Diaphragm pumps transfer liquid through the movement of a flexible membrane. Because they physically separate the liquid from the pump mechanism, they are a safe option for transferring corrosive, toxic or hazardous chemicals, and can handle demanding liquids such as paint, sludge, acid and solvents. In heavy industrial environments, for processes with high sealing requirements, they are used alongside industrial press systems .
Industrial Pump Selection Criteria
Choosing the right pump can reduce total cost of ownership by 30-50%. The following criteria should be systematically evaluated during the selection process:
Flow Rate and Pressure Requirements
The basis of pump selection is correctly determining the system's flow rate (m³/hour or L/min) and pressure (bar or mWC) requirements. The following factors should be taken into account when calculating these values:
- Peak flow rate vs. nominal flow rate: The system must not exceed pump capacity even at peak flow demand
- Static pressure: The pressure component arising from the difference in liquid level
- Dynamic pressure: Friction losses and local resistances in the pipeline
- Safety margin: A 10-15% capacity reserve for unexpected load increases
- Future expansion: If there is a plan to increase factory capacity, pump sizing should be carried out accordingly
Liquid Properties and Material Compatibility
The physical and chemical properties of the liquid to be transferred by the pump directly affect the choice of pump material. To prevent corrosion, wear and sealing problems, the following parameters should be documented:
| Parameter | Area of Impact | Recommended Material |
|---|---|---|
| Acidic liquids (pH < 4) | Corrosion risk | 316L stainless steel, Hastelloy |
| Alkaline liquids (pH > 10) | Corrosion risk | 304 stainless steel, cast iron |
| Abrasive particles | Wear and erosion | High-chromium alloy, ceramic coating |
| High viscosity (> 500 cP) | Flow rate drop, power increase | A positive displacement pump should be preferred |
| Low temperature (< -20°C) | Brittleness, sealing | Low-temperature steel, PTFE seal |
Energy Efficiency and Total Cost of Ownership
Industrial pumps can account for 20-25% of a factory's total energy consumption. For this reason, when selecting an industrial pump , it is critical to look not only at the purchase cost but also at the 10-20 year operating cost. Total cost of ownership (TCO) consists of three main components:
- Purchase cost (10-15%): Initial investment, installation and commissioning
- Energy cost (60-75%): The electrical energy consumed over the pump's lifetime
- Maintenance cost (15-25%): Periodic maintenance, spare parts and planned shutdowns
Even if a high-efficiency pump costs 15-20% more at the purchasing stage, it pays back the difference within 1-3 years through energy savings. For this reason, pumps that comply with EU MEI (Minimum Efficiency Index) or HI (Hydraulic Institute) efficiency standards should be preferred. As an international reference, the Hydraulic Institute standards and the US Department of Energy efficiency guidelines should be reviewed.
Pump System Integration
Once the industrial pump selection is complete, integrating the pump into existing plant systems is the most critical stage in determining success. Not only the pump specifications but also its compatibility with piping, electrical, control and safety systems must be evaluated.
Piping and Hydraulic Design
Pump piping design directly affects pump performance. Incorrect piping increases hydraulic losses, raises the risk of cavitation and shortens pump life. The design principles to consider are as follows:
- Suction line design: Sufficient pressure must be provided to meet the Net Positive Suction Head (NPSH) requirement. The suction line should be as short as possible, with a sufficiently large diameter.
- Discharge line design: Check valves, strainers and isolation valves must be correctly positioned.
- Expansion-contraction transitions: Gradual transitions should be preferred over sudden cross-section changes to minimise flow turbulence.
- Flexible connections: Flexible bellows should be incorporated for thermal expansion and vibration absorption.
- Air release points: Automatic air release valves should be installed at high points to prevent air accumulation in the system.
Electrical and Control Systems Integration
Modern industrial pumps significantly improve energy efficiency by operating in integration with variable frequency drives (VFDs) and smart control systems. Pump control strategies are designed around three main approaches:
Fixed Speed Control
These are conventional direct-on-line (DOL) or star-delta start systems. They offer an economical solution for processes requiring a constant flow rate, but lead to energy waste under variable load conditions. Thanks to their simple design, maintenance costs are low.
Variable Speed Control (VFD)
VFD systems, which use a frequency converter to adjust pump motor speed according to process requirements, can deliver energy savings of 30-50%. They offer a major advantage particularly in systems where flow rate varies with process conditions (cooling water, HVAC, process fluid transfer). Points to consider when integrating a VFD:
- Motor insulation class must be VFD-compatible (EN 60034-25)
- Motor cables must be shielded and earthed
- A radio frequency interference filter (EMC filter) must be used
- VFD parameters must be set to match the pump curve
- A bypass mode must be provided for emergencies
Smart Pump and IoT Integration
With the Industry 4.0 transformation, smart pumps provide real-time data to plant management through sensor integration and cloud-based monitoring systems. Data such as vibration analysis, temperature monitoring, and pressure and flow measurement supports predictive maintenance warning systems. These systems, selecting an industrial pump offer added value that supports digital transformation in the process.
Pump Maintenance Strategies and Failure Prevention
60% of failures in industrial pumps stem from inadequate maintenance and incorrect operating conditions. A proactive maintenance strategy minimises planned downtime and extends pump life by 40-60%. Three fundamental maintenance approaches should be considered:

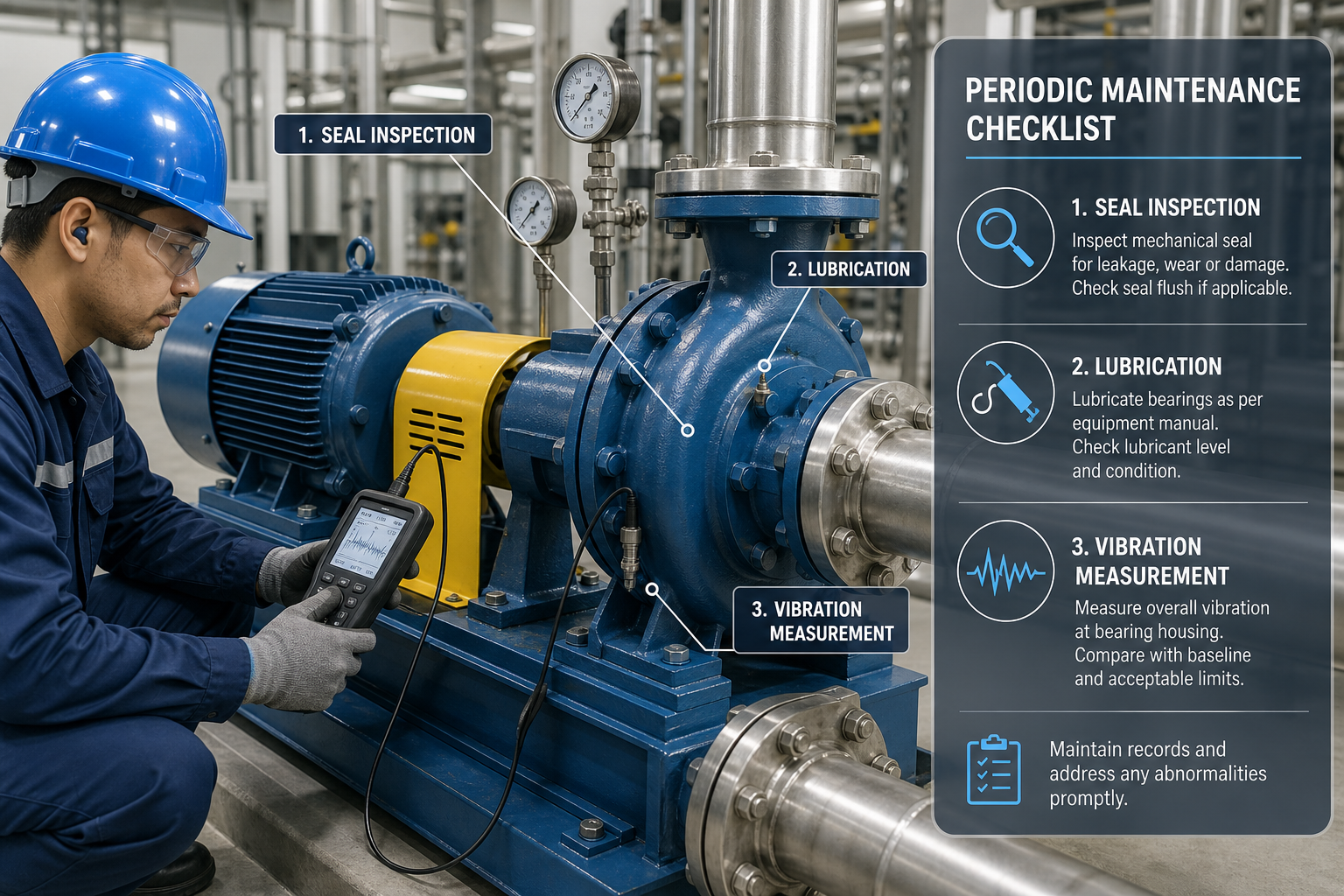

Periodic Maintenance Planning
Periodic maintenance covers routine inspections and interventions carried out at set time intervals. The recommended maintenance intervals for industrial pumps are as follows:
| Maintenance Operation | Interval | Criticality |
|---|---|---|
| Seal and packing inspection | Daily visual / Weekly detailed | High |
| Lubrication and greasing | 500-2000 hours | High |
| Vibration measurement and analysis | Monthly | Medium-High |
| Bearing temperature check | Daily (sensor-based) / Weekly (manual) | High |
| Impedance and insulation test | 6-monthly | Medium |
| Full overhaul (pump disassembly and reassembly) | Every 12-24 months | Medium |
Condition-Based Maintenance (Condition Monitoring)
Condition-based maintenance determines maintenance needs by continuously monitoring pump performance parameters. Unlike periodic maintenance, this approach prevents unnecessary interventions and identifies real failure risk in good time. The key monitoring parameters are as follows:
- Vibration analysis: Early detection of bearing failure, shaft misalignment and coupling misalignment
- Acoustic emission: Detection of cavitation onset and internal leaks
- Thermal imaging: Detection of bearing overheating and bearing housing problems
- Motor current analysis: Indicators of asymmetry, overload and electrical faults
- Seal monitoring: Early warning of seal and packing leaks
Spare Parts and Stock Management
n
Stocking critical spare parts minimises both planned and unplanned downtime. A list of critical spare parts recommended by the pump manufacturer should be drawn up, and stock levels should be checked regularly. The main spare parts categories are:
- Consumables: Seals, packings, gaskets, O-rings
- High-wear parts: Impellers, wear rings, diffusers
- Bearing sets: The appropriate bearing combination for each pump type
- Electrical components: Capacitors, thermistors, protection relays
Industrial bearing selection and maintenance the information on this subject offers a valuable resource for correctly selecting pump bearings and extending their service life.
Common Pump Failures and Recommended Solutions
Industrial pump failures are one of the leading causes of production losses. Understanding the causes of failure and taking preventive measures is as important a matter selecting an industrial pump as this. The most common failure types and recommended solutions are summarised below:
Cavitation and NPSH Problems
Cavitation is the bubble collapse that occurs when the pressure in the pump suction line drops below the vapour pressure of the liquid. It causes pitting on the impeller surface, vibration and noise. To prevent cavitation:
- The suction line should be designed as short and straight as possible
- Unnecessary elbows and valves should be removed from the suction side
- The pump installation height should be selected to meet the NPSH requirement
- Liquid temperature should be kept under control
- Flow rate regulation should be carried out on the discharge side (not the suction side)
Sealing Failures
Pump sealing failures mean environmental pollution, safety risk and product loss. There are two main sealing systems: mechanical seals and stuffing boxes. In both systems, correct material selection, installation and maintenance are of critical importance. The main causes of sealing failures are:
- Dry running (operating the pump without liquid)
- Incorrect gland packing material selection (liquid incompatibility)
- Over-tightening or loose installation
- Debris and particle ingress (lack of filtration)
- Thermal shock (sudden temperature change)
Motor and Electrical Faults
Pump motor faults usually occur due to overload, insufficient cooling, voltage fluctuation and insulation deterioration. Correct setting and regular inspection of protective relays (thermal overload, phase protection, earth leakage) is vital. When selecting a motor, industrial belt systems and power transmission design should also be taken into account.
Sustainability and Energy Optimisation
The energy efficiency of industrial pump systems is of strategic importance both in terms of cost and environmental sustainability. With an approach compliant with the ISO 50001 Energy Management System standard, the energy consumption of pump systems can be systematically optimised.
Energy Saving Strategies
The main strategies that deliver energy savings in industrial pump systems are as follows:
- VFD (frequency converter) integration: 30-50% energy savings for variable flow rate requirements
- Parallel pump operation: Efficient operating point through series/parallel combination of two or more pumps
- Pipework optimisation: Correct diameter and line length design to reduce friction losses
- Surge suppressor and expansion tank: Extending pump life by absorbing hydraulic shocks
- Low-friction pipe connections: Use of large elbow radius and smooth transition fittings
Sustainable Production and Environmental Impact
Manufacturers and users share joint responsibility for reducing the environmental footprint of industrial pumps. Environmental impact can be minimised by opting for pumps with low energy consumption, improving sealing systems and effective waste management. Furthermore, manufacturing pump systems from recyclable materials and planning end-of-life recovery processes contributes to circular economy principles.
Conclusion: Boost Efficiency with the Right Industrial Pump Selection
Industrial pump selectionis a strategic decision that directly affects a factory's production efficiency, energy consumption and maintenance costs. To summarise the topics covered in this guide:
- Determine the pump type (centrifugal vs. positive displacement) according to the application requirements
- Evaluate flow rate, pressure, liquid properties and material compatibility together
- Make an energy-efficient choice by taking total cost of ownership (TCO) into account
- Ensure full integration with pipework, electrical and control systems
- Prevent faults with periodic and condition-based maintenance strategies
- Support energy savings and digital transformation with VFDs and smart monitoring systems
Although correct pump selection and system integration require extra effort at the outset, they improve production reliability, reduce energy costs and minimise unplanned downtime in the long run. Industrial pump selection expertise in this area, CNC machining centre selection as with other industrial equipment choices, requires approaching from a total cost of ownership perspective. As Gurur Makina, we are happy to provide technical support in the selection of industrial pumps and machinery.
