In the world of industrial manufacturing, CNC machining centres are the backbone of modern production. Türkiye's machinery sector is turning to CNC technology every year for the production of parts that require increasingly complex and higher precision. However, choosing the right CNC machining centre is not just a matter of budget and brand preference; many variables must be taken into account, such as the geometry of the workpiece, tolerance requirements, production volume and workshop conditions. In this guide, we examine in detail all the criteria to consider when selecting a CNC machining centre for turning and milling operations.
What Is a CNC Machining Centre and Its Basic Working Principles
A CNC (Computer Numerical Control) machining centre is a multi-purpose industrial machine used for the computer-controlled, precise cutting, shaping and drilling of metal, plastic and composite materials. Unlike traditional manual lathes, CNC systems, as covered in our previous articles on industrial press machines , perform operations according to pre-programmed instructions, just as those machines do, thereby ensuring repeatability and precision.
Key Components of CNC Systems
A CNC machining centre is a complex system that forms the heart of the industrial production line. The key components are as follows:
- Machine body and bearing system: Cast iron or welded steel construction with vibration-damping properties
- Axis drive units: Servo motors, ball screws and linear guides for linear and rotary motion
- Main spindle unit: Spindle coupling, bearing system and cooling circuit

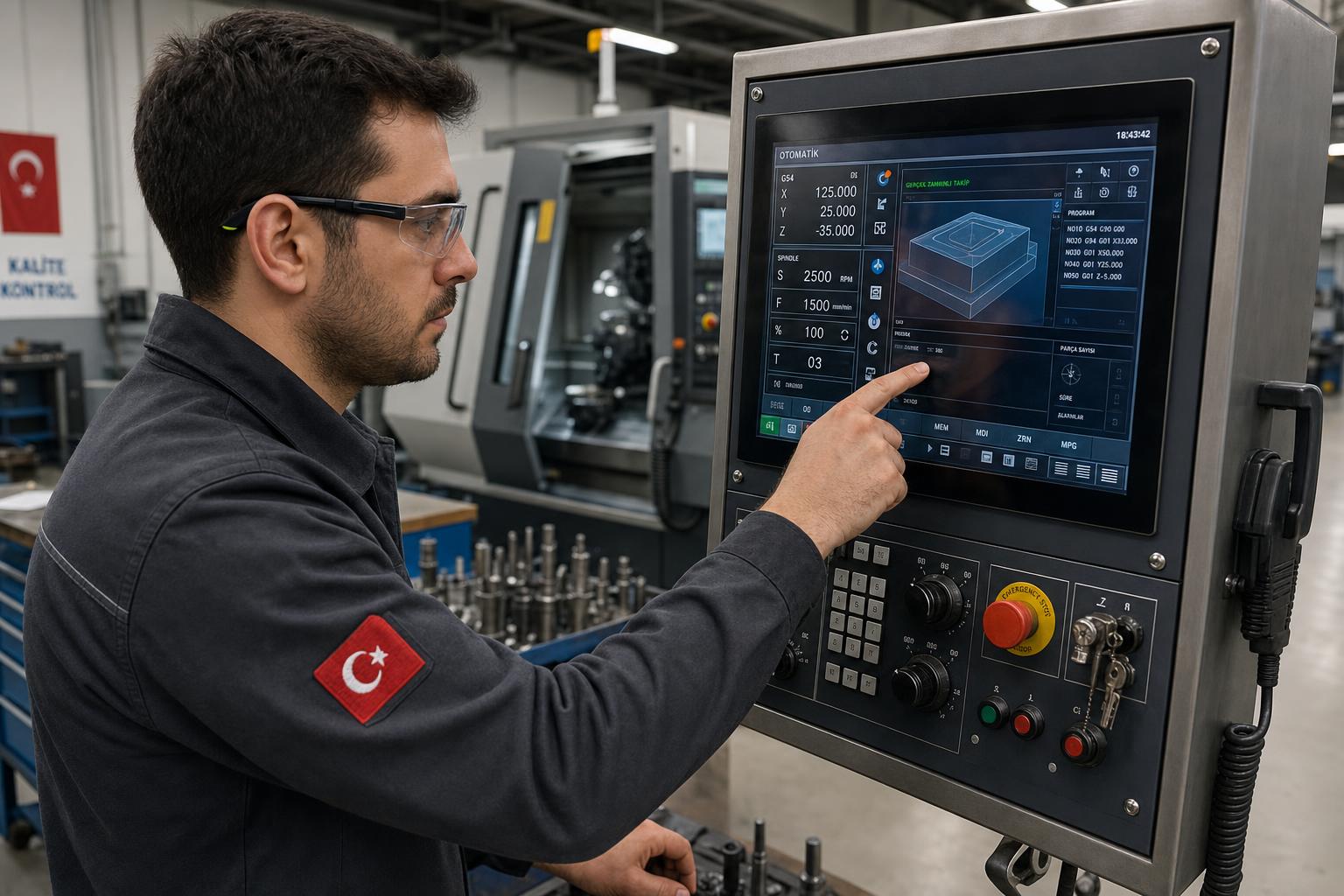

- CNC control unit: The electronic brain that processes motion commands and synchronises the axes
- Automatic tool changer (ATC): A system consisting of a tool magazine and a tool-change arm
- Cooling and lubrication system: Cutting fluid circuit and lubrication unit
Differences Between CNC and Traditional Machining
While traditional machining methods depend on operator skill and experience, CNC systems operate according to a program. This provides a major advantage, as seen in industrial belt systems , in applications requiring continuous, uninterrupted operation. CNC production delivers repeatable results with a precision of up to 0.01 mm; on traditional lathes, this figure varies according to operator experience.
Selecting a CNC Lathe for Turning Operations
Turning is the process of cutting the outer surface, inner surface or end face of cylindrical workpieces. CNC lathes are available in a wide range, from simple 2-axis models to complex 5-axis systems.
2-Axis CNC Lathes: Entry-Level Production
Two-axis CNC lathes move along the X and Z axes to perform external and internal turning of cylindrical parts. These machines are ideal for the serial production of parts with simple geometry. They are widely used in areas such as the automotive supply industry and valve and fitting manufacturing in particular. The advantage of 2-axis lathes lies in their low investment cost and straightforward programming requirements. However, they may prove inadequate for parts with complex geometry.
2-Axis Turning Technical Parameters
The following parameters should be considered when selecting a 2-axis CNC lathe:
- Chuck capacity: Determines the maximum diameter and length of the workpiece
- Centre height: Defines the maximum workpiece diameter (typically 150-500 mm)
- Spindle speed: Maximum RPM is determined by the material to be machined and the diameter
- Spindle power: Power options ranging from 5.5 kW to 30 kW
- X/Z axis travel: Limits the dimensions of the parts that can be machined
Multi-Axis CNC Lathes: For Complex Geometries
Thanks to their live tooling feature, 3, 4, or 5-axis CNC lathes can perform turning as well as milling, drilling, and grooving operations in a single operation. This feature, as in bearing selection and maintenance , significantly reduces operation time in applications requiring precision and versatility.
Live Tooling Systems and the Y-Axis
Live tooling is a system that allows tools rotating independently of the main spindle to be used on a turning centre. The Y-axis, in turn, provides off-centre machining capacity by enabling perpendicular movement on the workpiece spindle. When these two features are combined, it becomes possible to complete up to 90% of complex parts on a single machine. This capability is particularly critical in the automotive, aerospace, and medical sectors.
When selecting a multi-axis lathe, factors such as the number of live tools, Y-axis travel, the presence of a sub-spindle, and bar feeder compatibility should be evaluated. The sub-spindle eliminates the need for a second operation by allowing the back face of the part to be machined.
Choosing a CNC Machining Centre for Milling Operations
Milling is a machining method in which a rotating cutting tool shapes the workpiece by removing material from it. CNC machining centres are available across a wide spectrum, ranging from 3-axis vertical models to 5-axis simultaneous models.
3-Axis CNC Machining Centres
Three-axis CNC machining centres move along the X, Y, and Z linear axes to enable the machining of flat or simple 3D surfaces. They are the most widely used type of CNC among SMEs in Turkey, providing effective use in areas such as mould making, sheet metal dies, general-purpose mechanical part production, and prototyping.
Critical Parameters in 3-Axis Selection
The following technical parameters stand out when selecting a 3-axis machining centre:
- CTC (Centre-to-Centre) distance: The maximum machining area, determined by the X-axis travel
- Y-axis travel: Capacity to machine wide parts
- Z-axis travel: Ability to machine deep parts
- Spindle taper type: Standards such as BT40, BT50, or CAT40
- ATC (Automatic Tool Changer) capacity: Tool magazine ranging from 16 to 60
- Table load capacity: Workpiece-carrying capacity expressed in tonnage
4-Axis and 5-Axis CNC Machining Centres
Four- and five-axis CNC systems add rotary axes (A, B or C) to enable the machining of multi-surface parts in a single operation. They are essential for parts with 3D free-form surfaces, such as impellers, turbine blades, complex mould cavities and aerospace components. Five-axis simultaneous machining allows the cutting tool to continuously approach the workpiece at the optimal angle, improving surface quality and shortening machining time.
The points to consider when choosing a five-axis machine are as follows:
- Rotary table precision: Rating expressed in arc-seconds
- Rotary table torque capacity: The power required to rotate heavy parts
- RTCP (Rotation Tool Center Point): A critical software feature for 5-axis simultaneous machining
- Collision analysis and simulation: CAM software integration
Decision Criteria for CNC Machining Centre Selection
Determining the right CNC machining centre takes more than just the number of axes or the brand. To select the machine that suits your production requirements, you need to systematically evaluate the following criteria.
Workpiece Geometry and Material Analysis
The shape, dimensions and material of the part to be produced are the most fundamental determinants of machine selection. For materials with high hardness (tool steels, stainless steels), machines with high torque and a rigid body should be preferred. Softer materials, such as aluminium, require high speed and rapid feed rates. Makine.com.tr 's sector data shows that the most commonly machined materials in Türkiye are, in order, steel, aluminium and brass.
Spindle Recommendations by Material Class
| Material Class | Recommended Spindle Type | Max. RPM | Power (kW) |
|---|---|---|---|
| Aluminium | HSM (High Speed Machining) | 24.000+ | 11-18 |
| Stainless Steel | High Torque, Gear Drive | 4.000-6.000 | 18-30 |
| Carbon Steel | General Purpose, Belt Drive | 8.000-12.000 | 11-15 |
| Copper/Brass | Medium Speed, General Purpose | 6.000-10.000 | 7.5-15 |
| Titanium/Inconel | High Torque, Cooled | 3.000-5.000 | 22-37 |
Production Volume and Batch Size
Production volume is a factor that directly affects machine selection. While flexibility and quick set-up are the priorities for prototyping and small-batch production, stability, automation integration and continuous operating capacity become more important for large-scale production.
Prototype and Small-Batch Production
Machine flexibility is critical in low-volume production. The need for quick tool changes, easy programming and short set-up times makes Table-Top or Compact class machines stand out in this segment. In addition, CAM software integration and simulation capacity are important factors that speed up the prototyping process.
Medium and Large-Scale Mass Production
In high-volume production, the machine's continuous operating reliability and service network take priority. Factors such as cooling system capacity, thermal balancing, chip removal performance and compatibility with automatic part loading should be evaluated. Metalportal.com.tr data, 65% of mass production facilities in Turkey use 3-axis, 25% use 4-axis and 10% use 5-axis CNC systems.

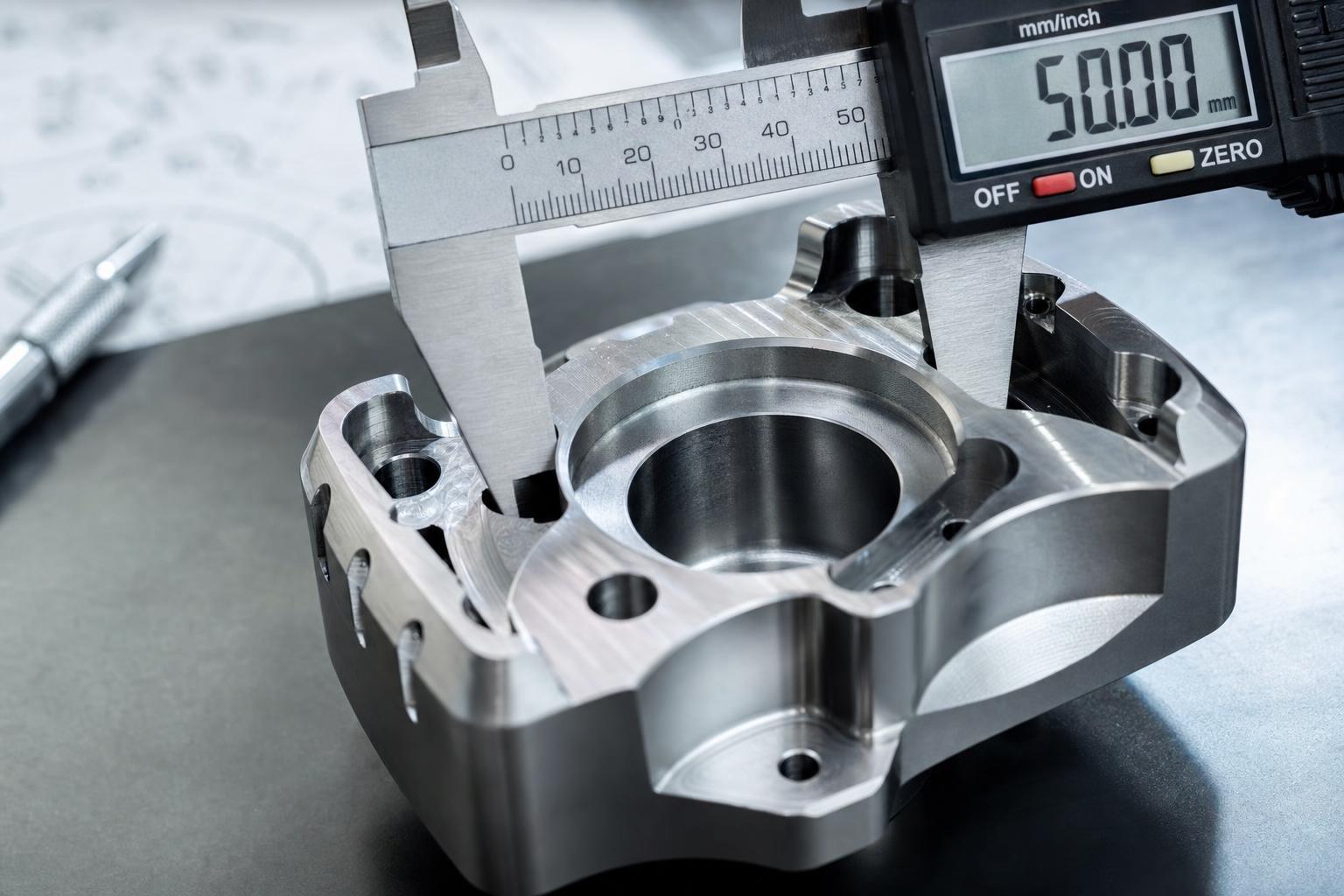

Precision and Tolerance in CNC Machining Centres
Precision is one of the most critical performance indicators of CNC machining centres. Positioning accuracy is evaluated according to the ISO 230-2 and JIS B 6201 standards. In Turkey, ISO 230-2 is more commonly used as the industrial standard.
Positioning Accuracy Classes
CNC machining centres are divided into three main categories according to their precision classes:
- Standard precision (±0.01 mm): General mechanical part production, sheet metal moulds
- High precision (±0.005 mm): Precision mould-making, medical implants, optical components
- Ultra-precision (±0.001 mm): Aerospace, semiconductor, research applications
When selecting a machine based on precision requirements, factors such as thermal expansion compensation, linear scale feedback and body rigidity should be evaluated. The use of a linear scale is mandatory for applications requiring 0.001 mm precision.
Maintenance and Service Infrastructure
Maintenance of CNC machining centres directly affects machine lifespan and production quality. A regular maintenance programme prevents unexpected failures and reduces total cost of ownership (TCO).
Periodic Maintenance Programme
An effective maintenance programme includes the following components:
- Daily checks: Oil level, coolant, chip cleaning, spindle heating
- Weekly checks: Linear guide lubrication, ballscrew cleaning, cooling system filter
- Monthly checks: Geometric accuracy measurement, tool magazine adjustment, electrical connections
- Annual checks: Spindle bearing replacement (recommended), full geometric calibration, CNC software update
Service Network and Spare Parts Access
One of the most critical factors in choosing a CNC machine in Turkey is the service network. Local technical service support, spare parts lead time and expert response capacity directly determine production downtime. When selecting a machine, the distributor's number of technical service staff in Turkey, spare parts warehouse and response time (SLA) should be evaluated.
Cost Analysis in CNC Machining Centre Investment
A CNC machining centre investment should not be evaluated solely on the basis of purchase price. Total cost of ownership (TCO) covers all costs incurred over the machine's economic lifespan.
TCO Components
Total cost of ownership consists of the following items:
- Purchase price: Machine, accessories, installation and commissioning
- Operating costs: Electricity, coolant, tool consumption, oil
- Maintenance costs: Periodic maintenance, spare parts, calibration
- Training costs: Operator and programmer training
- Depreciation: Value loss calculated on the assumption of a 7-10 year economic life
- Opportunity cost: Production value lost while the machine sits idle
Return on Investment (ROI) Calculation
The ROI calculation determines how long it will take for a machine investment to pay for itself. The simple ROI formula is:
ROI Period = Total Investment / (Monthly Production Revenue – Monthly Operating Cost)
In Turkey, the average ROI period for 3-axis CNC machining centre investments ranges from 18 to 36 months. For 5-axis systems, this period can extend to 24-48 months. However, by consolidating operations, 5-axis systems can reduce total production time by 40-60%.
The CNC Machining Centre Market and Trends in Turkey
While Turkey is one of Europe's largest machine importers, its domestic production capacity is also growing rapidly. CNC machine manufacturers, concentrated particularly in Bursa, Istanbul, Kocaeli and Izmir, are developing machines to international standards.
Industry Trends
The following trends stand out in the CNC machining centre market for the 2025-2026 period:
- Industry 4.0 integration: IoT sensors, real-time monitoring and predictive maintenance systems
- Hybrid machining: Combining machining and additive manufacturing on the same machine
- Automation and robotics: Part loading/unloading systems with pallets and robotic arms
- Green manufacturing: Low-energy-consumption spindles and environmentally friendly coolants
- AI-assisted CAM: Automatic tool path optimisation and collision analysis using artificial intelligence
Conclusion and Evaluation
Selecting a CNC machining centre is one of the most critical decisions in a production strategy. Clearly determining whether turning or milling is required, along with part geometry, production volume and precision requirements, forms the basis of the right machine investment. In Turkey's growing machine tool sector, making the right choice between domestic and imported brands requires a holistic evaluation of technical parameters, service infrastructure and total cost of ownership.
