Endüstriyel tesislerde enerji tüketiminin yaklaşık %60-70’ini elektrik motorları oluşturur. Fabrika otomasyonundan HVAC sistemlerine, pompaj uygulamalarından malzeme taşıma ekipmanlarına kadar her alanda kullanılan industrial electric motorslead to both energy waste and a sharp rise in maintenance costs when not selected correctly. In this guide, we comprehensively cover all the criteria to consider when selecting an industrial electric motor, efficiency classes and application-focused strategies.
What Is an Industrial Electric Motor, and Why Is the Right Choice Vital?

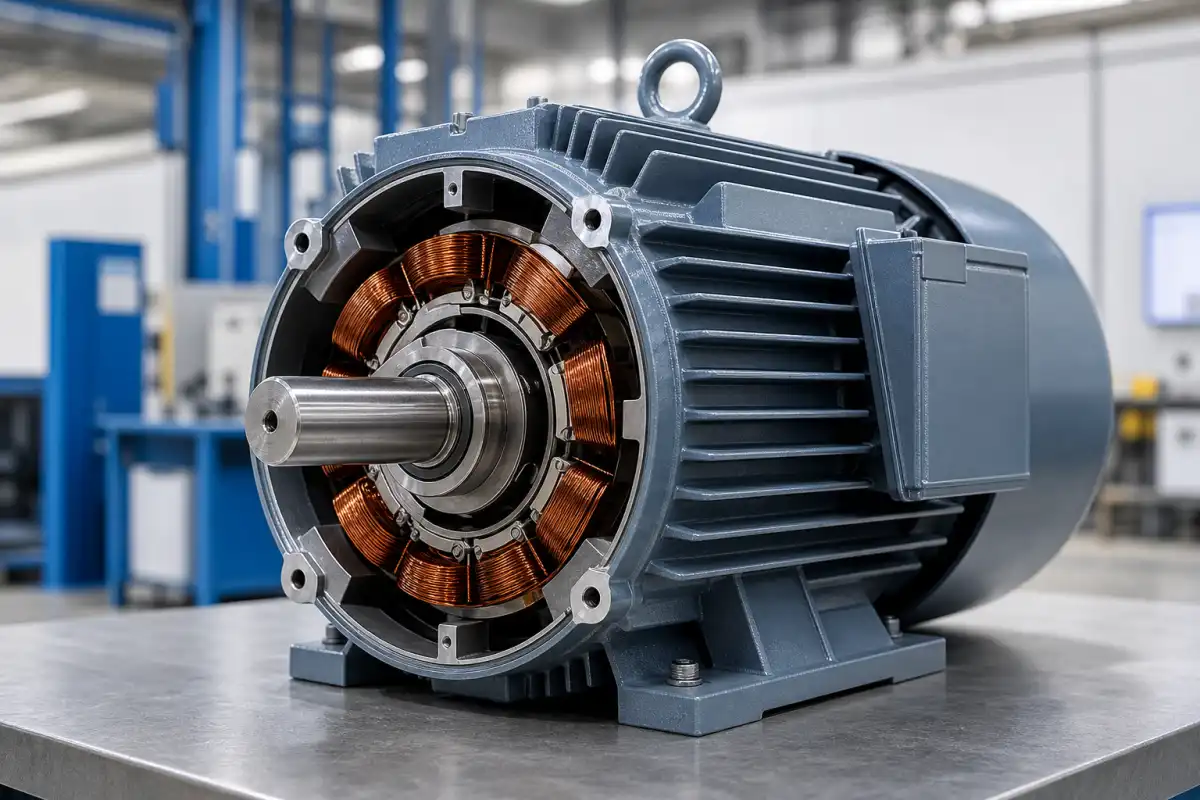

An industrial electric motor is essential equipment that converts electrical energy into mechanical energy to provide motion in industrial processes. A wide variety of types exist, chiefly three-phase asynchronous motors, synchronous motors, linear motors and servo motors. Each application has its own specific power, speed, torque and environmental requirements, and incorrect motor selection leads to the following problems:
- Energy waste: Oversized motors suffer a dramatic drop in efficiency when running under low load
- Excessive maintenance costs: Incompatible motor-drive combinations cause premature wear in bearings, windings and shafts
- Unexpected failures: Choosing the wrong environmental class or protection rating shortens motor life
- Production loss: Insufficient torque or overheating causes downtime
According to data from the International Energy Agency (IEA), efficiency improvements in industrial motors have the potential to cut global energy consumption by 20-30%. For this reason, industrial electric motor selection it is not just an engineering decision, but also a strategic investment decision.
Types of Electric Motor and Their Application Areas
Three-Phase Asynchronous (Induction) Motors
Endüstriyel uygulamaların %70’inden fazlasında kullanılan asenkron motorlar, basit yapısı, dayanıklılığı ve düşük bakım gereksinimiyle öne çıkar. Sincap kafesli (squirrel cage) rotor tipi endüstriyel sahanın vazgeçilmezidir. Slip ringli tipler ise yüksek momentli başlangıç gerektiren uygulamalarda tercih edilir.
Typical applications: Pumping, fan, compressor, conveyor, crusher, grinder and mixer systems. Used across a wide range, from fixed-speed applications to variable frequency drives (VFD).
Synchronous Motors
Synchronous motors are preferred in applications requiring constant speed and power factor correction. Their ability to operate at a high power factor provides an advantage in reactive power compensation at large facilities. However, they have a more complex design and higher initial investment costs.
Servo Motors
Servo motors are used in CNC machines, robotic systems and packaging machinery that require precise position control, speed regulation and high dynamic response. They provide closed-loop control through encoder or resolver feedback. In industrial automation, CNC machining centres and other such precision applications, servo motor selection is critical.
Linear Motors
Linear motors, which remove the need to convert rotary motion into linear motion, are used in transport systems requiring high speed and precision. Semiconductor manufacturing, laser cutting and high-speed assembly lines are the main application areas.
Key Parameters to Consider When Selecting a Motor
Power (kW/HP) and Load Profile
Selecting motor power depends on correctly determining the application's actual load profile. Different power values must be calculated according to the duty type: continuous duty (S1), short-time duty (S2) and intermittent duty (S3-S10). The most common mistake is oversizing the motor; choosing a motor to run at 75-80% load, rather than one running at 100% load, generally gives a more efficient result.
The following factors are taken into account in the power calculation:
- Friction losses in the system and mechanical efficiency
- Safety factor (generally between 1.15 and 1.25)
- Ambient temperature and altitude correction
- Starting torque and acceleration time requirement
- Dynamic load conditions and cycle analysis
Torque and Starting Characteristics
The starting torque requirement of the application is a decisive factor in motor selection. High-inertia loads (large fans, crushers, centrifuges) require high starting torque. The starting method — DOL (Direct On Line), Y/Δ, soft starter or VFD — should be selected according to the application's requirements.
Instantaneous Torque and Overload Capacity
Endüstriyel uygulamalarda kısa süreli aşırı yüklenmeler sık karşılaşılan bir durumdur. Motorun anlık tork kapasitesi, nominal torkun %160-250’si arasında değişir. Crusher, pres ve değirmen gibi uygulamalarda bu değer kritik öneme sahiptir. In industrial press machines as in high-torque applications, custom-designed motors may be required.
Rotational Speed and Speed Control
2, 4, 6 or 8-pole motors run at approximately 3000, 1500, 1000 and 750 rpm respectively (on a 50 Hz grid). While the number of poles is determined for fixed-speed applications, speed control is provided by a VFD (Variable Frequency Drive) for variable-speed requirements. The use of a VFD, in compressor and pneumatic systems can provide 30-50% energy savings.

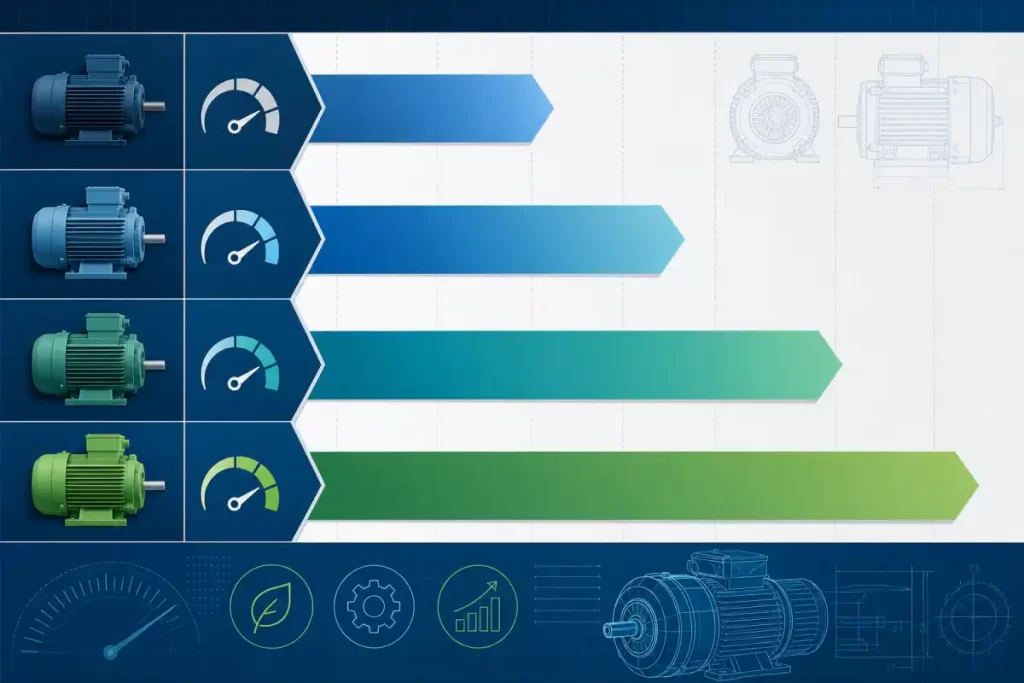

IE Efficiency Classes and Energy Saving Potential
Uluslararası IEC 60034-30-1 standardı, elektrik motorlarını verimlilik performanslarına göre dört ana sınıfa ayırır. Türkiye’de 2021 yılında yürürlüğe giren regülasyon, belirli güç aralığındaki motorlarda minimum IE3 seviyesini zorunlu kılmıştır.
IE1 – Standard Efficiency
Represents older-technology motors, and their use in new installations is banned in most countries. When replacing IE1 motors, the selection must always be made at IE3 or IE4 level.
IE2 – High Efficiency
Standart uygulamalarda kabul edilebilir verimlilik sunar. Ancak uzun çalışma saatlerine sahip sistemlerde IE3’e göre yıllık enerji maliyeti farkı ciddi boyutlardadır. Mevcut IE2 motorların IE4 ile değiştirilmesi ROI hesaplamasında genellikle 2-3 yıl içinde geri ödeme sağlar.
IE3 – Premium Efficiency
AB ve Türkiye’de 75 kW altı motorlar için minimum zorunlu standarttır. Bakır rotor teknolojisi ve optimize edilmiş sargı tasarımıyla IE2’ye göre %15-20 daha az enerji tüketir. Yeni tesis ve yenileme projelerinde temel seçim kriteri olarak kabul edilir.
IE4 – Super Premium Efficiency
Mevcut en yüksek verimlilik sınıfıdır. Özel sargı teknikleri, düşük kayıplı çelik laminasyonlar ve optimize edilmiş soğutma tasarımıyla IE3’e göre %10-15 ek enerji tasarrufu sağlar. Özellikle 8000+ saat/yıl çalışan motorlarda IE4 seçimi, yaşam döngüsü maliyeti açısından büyük avantaj yaratır.
Cost Comparison of Efficiency Classes
Annual energy cost comparison for a 75 kW motor (6000 operating hours, €0.15/kWh):
- IE1 motor: Approximately €68,000/year in energy costs
- IE2 motor: Approximately €64,000/year (6% saving)
- IE3 motor: Approximately €61,000/year (10% saving)
- IE4 motor: Approximately €58,000/year (15% saving)
Görüldüğü gibi, motorun satın alma fiyatı toplam yaşam döngüsü maliyetinin sadece %1-2’sini oluştururken, enerji maliyeti %95’in üzerinde paya sahiptir. Bu veriler, the efficiency class in industrial electric motor selection is the most important decision parameter.
Environmental Conditions and Protection Classes
IP Protection Ratings
Selecting an IP (Ingress Protection) rating suited to the motor's operating environment directly affects motor lifespan. The most commonly used IP ratings in industrial applications are as follows:
- IP23: For well-ventilated indoor environments
- IP44: Protected against splashing water and small objects
- IP54: Dust-protected, splash-water resistant (the most common industrial choice)
- IP55: Resistant to water jets, dust-tight
- IP56: For marine environments and heavy industry
- IP65 and above: Wash-down applications in the food, pharmaceutical and chemical industries
Temperature and Altitude Corrections
Yüksek ortam sıcaklığında ve rakımda motorun soğutma kapasitesi azalır. 1000 metre üzerinde her 100 metre rakım artışı için yaklaşık %1 güç düşüşü hesaba katılmalıdır. Benzer şekilde, 40°C üzerindeki ortam sıcaklıklarında motorun sınıf azalması yapılır. Türkiye’nin iç Anadolu ve güneydoğu bölgelerindeki tesislerde bu düzeltmeler özellikle kritiktir.
Explosion-proof (Ex-proof) Motors
Ex-proof motors are mandatory in explosive gas, vapour or dust environments (chemical, oil, natural gas, food flour processing). Protection types such as Ex d (flameproof), Ex e (increased safety) and Ex nA (spark-free) are determined according to ATEX/IECEx standards. When selecting an Ex-proof motor, zone classification (Zone 0, 1, 2) and temperature class (T1-T6) must be assessed together.
Motor Compatibility with VFD (Variable Frequency Drive)
Using a VFD in variable-speed applications provides a major advantage in terms of energy saving and process control. However, not every motor is VFD-compatible. The following criteria should be considered when selecting a VFD-compatible motor:
- Insulation class: Minimum Class F (155°C), preferably Class H (180°C) insulation
- dv/dt withstand: Reinforced insulation against PWM pulse voltage
- Bearing current prevention: Insulated bearing or shaft grounding brush
- Independent cooling fan: For adequate cooling at low speeds (single-fan motors can overheat at low speed)
- Servo rating: VFD’nin motorla uyumlu darbe genişliği modülasyonu
In motors driven by VFDs bearing current and insulation stress issues are common causes of failure. For this reason, selecting a VFD-compatible motor and applying the correct cable/filter setup is of vital importance.
Motor Maintenance Strategies and Predictive Maintenance
Planned Maintenance (Preventive Maintenance)
Basic maintenance activities for industrial motors include bearing lubrication/greasing, winding resistance measurement, vibration analysis, thermal imaging and insulation resistance testing. Maintenance intervals are determined according to motor type, operating conditions and manufacturer recommendations. Standard planned maintenance intervals are generally recommended at 3,000-6,000 operating hours or every 6-12 months.
Condition-Based Maintenance
This is a proactive maintenance approach that monitors the motor's health using techniques such as vibration analysis, motor current signature analysis (MCSA), thermography and oil analysis. Online monitoring systems allow motor condition to be tracked around the clock. Early fault detection reduces planned downtime costs by 50-70% and minimises unplanned downtime.
Total Cost of Ownership (TCO) Approach
Looking only at the initial investment cost when deciding on a motor purchase is the biggest mistake industrial facilities make. The following items should be evaluated when calculating Total Cost of Ownership (TCO):
- Purchase cost: 1-2% (a small share that is often overlooked)
- Energy cost: 90-95% (the largest item over the life cycle)
- Maintenance cost: %3-5
- Failure/downtime cost: %2-5
- Decommissioning/commissioning cost: %1-2
TCO yaklaşımı, IE3 veya IE4 motor seçiminin ilk yatırım farkını 1-3 yıl içinde enerji tasarrufuyla geri ödediğini açıkça gösterir. 15-20 yıllık motor ömrü düşünüldüğünde, verimlilik sınıfı yükseltmenin ROI’si %200-400 seviyelerine ulaşır.
Common Mistakes in Industrial Motor Selection
1. Oversizing
Endüstriyel motorların yaklaşık %60-70’i kapasitelerinin altında çalışmaktadır. “Büyük olsun zarar vermez” anlayışı, düşük yükte çalışma nedeniyle verimlilik kaybına, güç faktörü düşüşüne ve erken arızalara yol açar. Motor nominal gücünün %65-100’ü aralığında çalışması en verimli bölgedir.
2. Choosing the Wrong Starting Method
DOL başlatma, şebekeye ani yüksek akım çeker ve mekanik şok yükü oluşturur. Yüksek eylemsizlikli yüklerde soft starter veya VFD kullanımı hem motor ömrünü uzatır hem de şebeke kalitesini korur. Başlangıç akımı DOL’de nominalın 6-8 katı iken, soft starter ile 2-3 kata indirilebilir.
3. Neglecting Environmental Conditions
Environmental factors such as high temperature, humidity, dust, explosive atmospheres and high altitude significantly affect the performance and service life of standard motors. When selecting a motor, it is essential to correctly identify the environmental conditions and determine the appropriate IP/Ex rating.
4. Ignoring VFD Compatibility
VFD ile çalıştırılacak motorların özel tasarımla üretilmesi gerekir. Standart motorlar VFD’nin oluşturduğu yüksek dv/dt darbelerine dayanamayarak sargı yalıtımı hasarı ve rulman arızaları yaşayabilir. VFD uyumlu motorlarda yalıtım kuvvetlendirme, yalıtımlı rulman ve bağımsız soğutma fanı standart olmalıdır.
Motor Selection Decision Matrix and Application-Based Recommendations
Pump and Fan Applications
Centrifugal pumps and fans are variable-torque applications in which torque demand rises in proportion to the square of the speed. Speed control with a VFD offers a major advantage in these applications thanks to the cubic energy-saving relationship. An IE4 motor + VFD combination can deliver 40-50% energy savings in pumping systems. According to the International Energy Agency's motor systems report, improvements in motor efficiency in pump and fan systems represent the greatest potential for global energy savings.
Compressor Applications
For fixed-speed compressors, IE3 motors should be the minimum standard, while IE4 motors are preferred for VFD-controlled compressors. In compressor applications, the motor's overload capacity and starting torque are particularly important.
Conveyors and Material Handling
Conveyor systems require high starting torque and frequent start-stop cycles. Selecting a motor suited to S3-S4 duty types, together with soft starting via a VFD, reduces mechanical shock loads and extends system service life. For heavy-duty conveyors, an IP55 or higher protection rating is recommended.
CNC and Precision Machining
In CNC machines, the choice of servo motor and stepper motor directly determines machining precision. High dynamic response, low torque ripple and precise encoder feedback are the requirements of these applications. Cooling system design and vibration characteristics also affect machining quality.
Sustainability and Future Trends
Three key trends stand out in industrial motor technology:
- IE5 and beyond: 2025 sonrası hedeflenen IE5 sınıfı motorlar, manyetik azaltma teknolojisi ve senkron reluctance motor tasarımlarıyla IE4’ün ötesine geçmeyi amaçlıyor
- Digital twin and IoT: Real-time condition monitoring and predictive maintenance through motor sensors and cloud-based analytics platforms
- Sustainable materials: Use of aluminium rotors instead of copper, reduction of rare-earth elements, and use of recyclable materials
IEC (International Electrotechnical Commission), motor verimlilik standartlarını sürekli güncelleyerek endüstrinin enerji verimliliğini artırmayı hedeflemektedir. 2030 yılına kadar IE4’ün minimum standart haline gelmesi ve IE5’in yaygınlaşması beklenmektedir.
Conclusion and Evaluation
Industrial electric motor selection is one of the most important energy and performance decisions at a facility. The right motor choice is achieved through accurate analysis of the application's load profile, balancing the energy-saving potential of the efficiency class against investment cost, comprehensive assessment of environmental conditions, and ensuring VFD compatibility.
In particular, in industrial electric motor selection Adopting a TCO approach, favouring IE3/IE4 efficiency classes and implementing predictive maintenance strategies is the most effective way for industrial facilities to cut energy costs by 20–40% while also minimising downtime caused by breakdowns. At Gurur Makina, we continue to be the industry's trusted solution partner for technical consultancy and reliable product supply in industrial motor selection.
