How to Plan Wear Control and Replacement Timing in Chain and Gear Systems?In industrial production, chain and gear systems are often one of the line's least visible yet most critical power transmission points. In conveyors, packaging lines, transport systems, elevators, agricultural machinery, food production lines and heavy industry equipment, when chain and gear alignment breaks down, the problem is not limited to a single worn part. Line stoppages, reduced production tempo, increased energy consumption, unplanned maintenance needs and safety risks can all arise at the same time. For this reason, chain and gear wear control is not just routine observation by the maintenance team; it is a strategic process that jointly involves purchasing, stock management, technical service and production planning.
Properly planned wear control doesn't leave the timing of a part's replacement to guesswork. Chain elongation, tooth profile wear, run-out, noise, vibration, lack of lubrication, alignment problems and operating load are all assessed together. This way, the maintenance team avoids unnecessary costs from replacing a part too early, while also avoiding unplanned line downtime caused by spotting a critical point too late. In this guide, we look at how wear should be tracked in chain and sprocket systems, which criteria should determine replacement timing, and how supply continuity ties into maintenance decisions.
Why Is Chain and Sprocket Wear Control a Critical Maintenance Topic?
Chains and sprockets are exposed to continuous contact, load, friction and environmental effects during operation. Even when correctly selected, these parts can develop elongation, surface wear, pin-and-bush clearance, tooth root deformation, or loosening at bearing connection points over time. These changes appear minor at first, but once the fit between chain pitch and sprocket profile starts to break down, the system comes under greater strain. A line running on the same motor power may then require more energy, vibration can increase, and neighbouring parts may fatigue as well.
This is why wear control doesn't simply answer the question “is the part old?”. Its real purpose is to understand what condition the line is operating under and how close the current part is to its safe operating limit. Especially in businesses running continuous production, a chain breaking or a sprocket stripping under load can create a downtime cost far higher than the price of the spare part itself. At this point, correct matching in chain and sprocket systems also becomes a core part of wear tracking.
Why Are the Most Common Signs of Wear?
Wear in chain and sprocket systems is rarely identifiable from a single sign alone. For an accurate assessment, visual inspection, measurement, sound, vibration, operating temperature and the line's production behaviour all need to be monitored together. The signs below are early warning signals the maintenance team should pay particular attention to.
Chain Elongation and Pitch Distortion
One of the most common problems in chains is elongation. This is less about the chain's metal actually stretching elastically and more about increasing clearance at the pin-and-bush connections. As this clearance grows, the chain pitch changes and the contact point with the sprocket shifts away from its ideal position. What appears at first to need nothing more than a tension adjustment can, at a later stage, cause uneven loading on the sprocket surface. Once chain elongation exceeds certain tolerance limits, simply re-tensioning the chain is no longer a solution; a replacement plan needs to be drawn up.
Tooth Profile Pointing and Hook Formation in Sprockets
Sprocket wear is most often noticed as thinning at the tooth tips, polished friction marks on the tooth surface, or a hook-like change in form. Where contact is uneven, particularly at the points where the chain engages and disengages from the sprocket, the tooth profile deteriorates faster than normal. In such cases, replacing the chain alone may not be enough. A worn sprocket can wear out a new chain again within a short time. For this reason, the replacement decision should be made using an approach that evaluates the chain and sprocket together.
Noise, Vibration and Irregular Movement
A properly operating chain-sprocket system will produce a certain level of mechanical sound; however, knocking, periodic catching, metallic impact or increased vibration should not be considered normal. Increased noise may result from insufficient lubrication, misalignment, chain slack, sprocket eccentricity or worn connecting components. Vibration, in turn, is not merely a comfort issue; it can create additional fatigue on the bearings, shaft, connection points and housing.
Visual Observation Alone Is Not Enough for Wear Control
Visual inspection is the first step of the maintenance process, but it is not sufficient on its own for making a reliable decision. A chain that looks fine from the outside does not mean the pin-bushing clearances are within an acceptable range. Likewise, the absence of a visible crack on the sprocket surface does not guarantee that the profile is still working correctly. For this reason, the inspection process must be tied to measurable criteria.

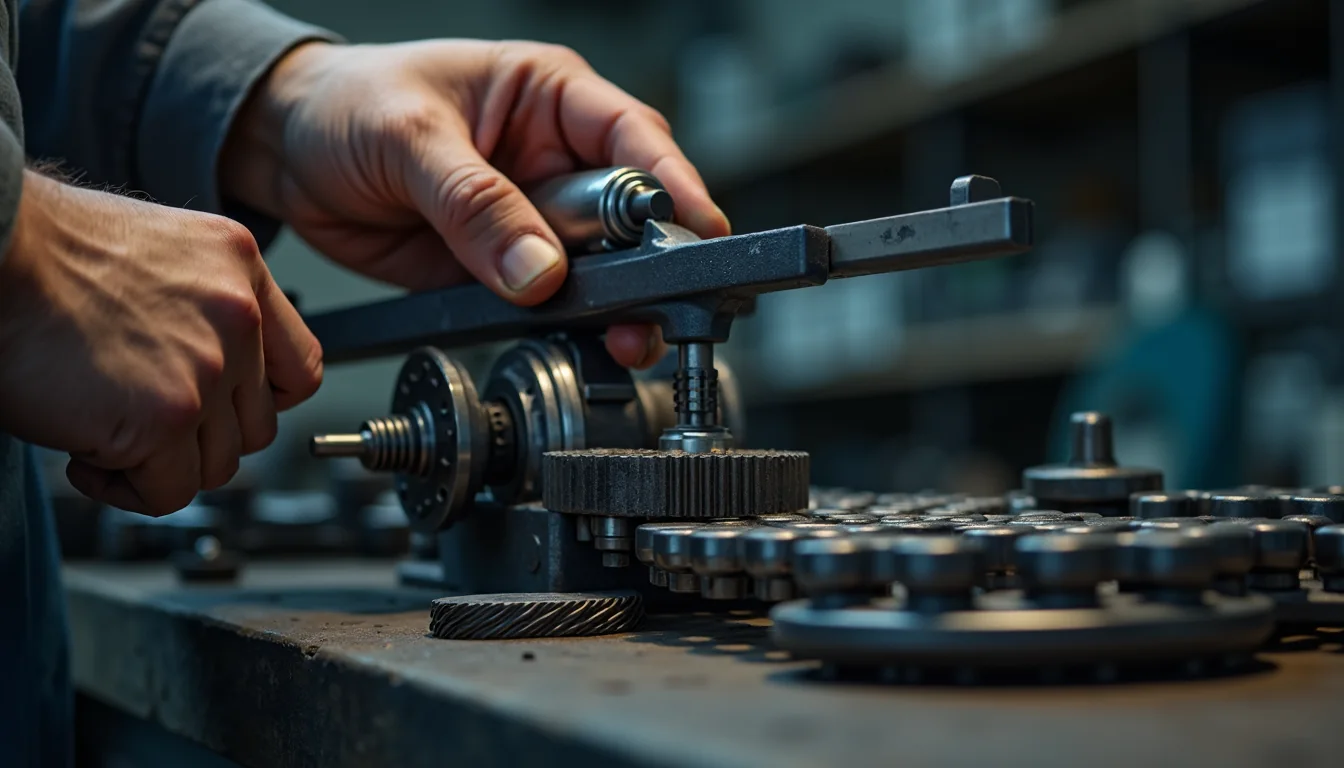

Chain elongation should be measured over a specific reference length, sprocket surfaces should be cleaned to examine the profile, the tensioner adjustment interval should be recorded, and the results should be compared with previous maintenance findings. If the tensioner needs to be readjusted sooner at every maintenance visit, this may indicate accelerating wear in the system. By keeping these records consistently, businesses can plan replacement timing based on data rather than intuition.
The Role of Maintenance Records in the Decision-Making Process
Maintenance records are not kept merely to show what was done in the past. When used correctly, they help predict a part's service life, failure tendency and supply needs. It should be recorded which line uses which brand, material, size and tooth-count of part; the date it was replaced; how many hours it operated; and which failure symptom led to its replacement. This discipline provides a significant advantage, particularly for businesses managing multiple production lines at the same time.

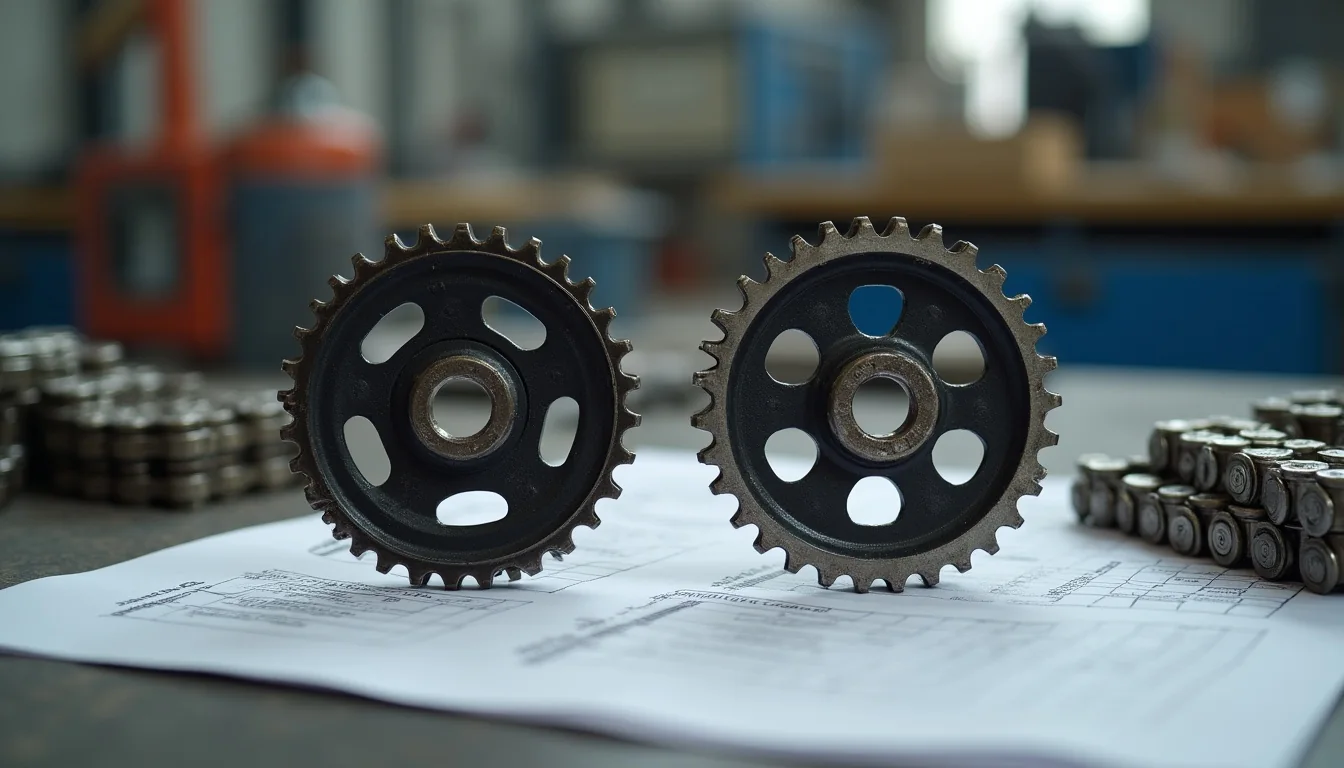

How Should Replacement Timing Be Planned?
The time for replacing chains and gear systems should not be seen solely as the moment the part fails completely. In a planned maintenance approach, the aim is to replace the part while it is still within a safe operating limit and at a time that has the least impact on production. To achieve this, three key pieces of data are assessed together: measurement results, operating conditions and the operational risk level.
Measurement Results
Chain elongation, gear profile, tensioner adjustment distance and clearance in connecting elements provide measurable data. These values should be interpreted together with manufacturer tolerances, operational experience and the criticality of the line. On critical lines, an earlier replacement plan can be made for parts approaching limit values. On lower-risk lines, controlled use can continue by increasing the monitoring frequency.
Operating Condition
Dusty environments, moisture, chemical contact, high temperatures, shock loads, frequent start-stop operation and inadequate lubrication accelerate wear. While the same chain and gear can run for a long time under clean, balanced loads, they may need replacing in a much shorter time in a heavy, dirty environment. For this reason, rather than setting a standard schedule, it is more accurate to build the maintenance interval around the line's actual operating conditions.
Operational Risk Level
In some systems, a part failure causes only a brief stoppage, while on other lines it can halt production entirely. For this reason, the replacement decision should take into account the total impact of a failure rather than the price of the part. Production loss, health and safety risk, delivery delay, additional service needs and damage to neighbouring equipment should all be considered together. This approach also allows for more accurate planning in terms of the impact of part selection on operational continuity .
Should the Chain and Gear Be Replaced Together?
One of the most common mistakes is replacing only the part that is visibly faulty. When a new chain is fitted to a worn gear, it can quickly start running out of alignment. Likewise, an elongated chain with excess clearance can create uneven loading on an otherwise sound gear. For this reason, the maintenance team should treat the chain and gear not as independent parts but as a system that works together.
It is not always necessary to replace both parts at the same time; the decision should instead be based on measurement and surface condition. If the gear profile is sound, the shaft alignment is correct and chain wear is the main issue, only the chain replacement may be planned. However, if the teeth show hooking, asymmetric wear, cracking, tooth-root deformation or breakdown of the hardened surface, gear replacement should also be scheduled. Decisions made without this assessment may appear to cut costs in the short term, but can lead to repeated labour and downtime costs in the medium term.
How Do Lubrication, Alignment and Tension Affect Wear?
Wear is not just about part quality. Even a correctly selected chain and sprocket can wear out earlier than expected due to incorrect lubrication, poor alignment or improper tension. This is why a maintenance plan should be built not only around replacement, but around improving operating conditions.
Lubrication Discipline
Insufficient lubrication increases friction in the pin-and-bush area and accelerates chain elongation. Excessive or incorrect lubrication, on the other hand, can attract dirt and form an abrasive layer. The type of lubricant required can vary across sectors such as food, packaging or heavy industry. For this reason, the lubrication product and application interval should be determined according to the operating environment.
Alignment Check
When sprocket axes are not on the same plane, the chain engages the sprocket under lateral load. This causes uneven wear on both the chain plates and the sprocket surfaces. Alignment checks should be repeated during periodic maintenance, just as they are during new installation. On lines with vibration in particular, loose connections can throw off alignment over time.
Tension Adjustment
A chain that is too loose creates a risk of whipping, knocking and tooth jumping. A chain that is too tight places unnecessary load on the bearings, shaft and chain connections. The correct tension should be determined according to the system's design, centre distance and operating load. If the tension setting keeps slipping out of adjustment, this should be treated not merely as a setting problem but as a sign of elongation or alignment issues.
Supply Continuity Is a Separate Part of the Replacement Plan
Even if the maintenance team correctly determines the replacement timing, the plan falls apart if the right part cannot be sourced in time. For this reason, supply continuity is an integral part of the maintenance strategy for chain and sprocket systems. Chain sizes, sprocket technical specifications, material expectations, quantity requirements and equivalent options used on critical lines should be clarified in advance.
Lead times can be longer than for standard products, particularly for custom-sized chains, sprockets with a specific tooth count, or power transmission parts requiring special materials. For this reason, the replacement decision should not be left until the last minute. delivery time in chain and sprocket supply is evaluated together with the production plan, maintenance shutdowns can be managed in a more controlled way.
Creating a Critical Parts List
Not every business needs the same stock level. However, a minimum spare parts list should be created for chains and sprockets running on critical lines. This list should include part dimensions, technical drawing, location of use, quantity, previous replacement date and supplier information. This way, no time is wasted identifying the right part in the event of a failure.
Equivalent Part Evaluation
Equivalent part selection should not be based on dimensional similarity alone. Material grade, hardness, coating, operating load, standard compliance and compatibility with other parts in the system must be examined together. Choosing the wrong equivalent may solve a short-term supply problem, but it can accelerate wear and cause a much bigger downtime. This is why the technical evaluation process must be carried out with a technical specification approach when purchasing chains and sprockets.
How Should Purchasing and Maintenance Teams Work Together?
The healthiest outcome in chain and sprocket replacement planning is achieved when maintenance and purchasing teams work from the same data. The maintenance team determines the wear condition on site, failure trends and technical needs. The purchasing team manages lead time, stock, quality certification, price range and supplier continuity. When these two sides work separately, either a technically unsuitable product is purchased, or production is put at risk because the right product arrives late.
For this reason, technical dimensions, part codes, points of use, visual references, previous supply records and maintenance notes should be kept in a shared file. When obtaining quotes, not only price but also delivery time, product standard, manufacturer information, quality certification, warranty terms and technical support capability should be evaluated. A fixed, one-size-fits-all cost approach is often not appropriate for industrial parts; evaluation should be based on need, dimensions, material, quantity and delivery conditions.
A Practical Control Flow for Wear Monitoring
Businesses can set up a control flow for chain and sprocket systems that is not complicated but is applied regularly. The first step is to determine the criticality level of the line. Systems that directly halt production, have no standby line, or carry a high safety risk should be monitored more frequently. The second step is to standardise the measurement points. Chain length, sprocket surface, tensioner position, lubrication condition and alignment should be examined using the same method at every check.
The third step is to record the findings. Even simple classifications such as "normal", "to be monitored", "planned replacement required" and "urgent intervention" make the decision process easier. The fourth step is to match the supply plan with the maintenance schedule. Questions such as whether stock is available for systems requiring part replacement, whether a product needs to be ordered, and which date the maintenance shutdown should be scheduled for must be answered in advance.
Planned Supply and Technical Compatibility with the Gurur Makina Approach
Gurur Makina offers an approach to industrial chains, sprockets and power transmission parts that values not only product supply but also correct technical matching and continuity. If the replacement need arising from chain-sprocket wear monitoring is not supported by the correct dimensions and the correct part selection, the maintenance plan remains incomplete. For this reason, when selecting a product, the line's operating load, environmental conditions, existing part dimensions, sprocket structure, chain type and supply lead time should be evaluated together.
For businesses that operate on a planned basis, the real gain is not searching for parts after a breakdown, but preparing technical data before the need arises and establishing a reliable supply flow. Businesses that regularly monitor wear indicators, determine replacement timing based on measurement, and manage critical parts with the right procurement plan protect production continuity more securely. Sustainable performance in chain and gear systems is only possible when the right inspection, the right maintenance and the right supplier come together within the same plan.
For a more comprehensive technical framework, general resources on chain standards and power transmission systems can also be reviewed: roller chain technical overview and ISO chain standards provide fundamental reference points on this subject.
