In industrial power transmission, chain selection often only comes up after a failure has occurred. Yet a transmission chain is not merely an ordinary machine element that transmits rotary motion; when chosen correctly, it reduces maintenance frequency, limits unplanned downtime and lowers total operating costs. When chosen incorrectly, problems such as elongation, uneven wear, noise, sprocket damage and energy loss quickly become apparent. For this reason, the question "which chain is needed?" should really be approached as "which chain gives the right result under which operating conditions?"
Transmission chain types vary according to load capacity, speed, environmental conditions, lubrication availability, hygiene requirements and application geometry. While a standard roller chain may be sufficient in one production facility, another facility may require a double-strand chain, a stainless steel chain or a solution with special attachments. Especially in industrial enterprises, when the difference between a standard product and a specific need is not read correctly, choices that appear low-cost in the short term end up costing more in the long run.
In this guide, we cover the most common transmission chain types, the differences between them, the applications in which they stand out, and how to approach the selection process, within a detailed yet accessible framework. The aim is to create a reference that can be published and that works in the field for procurement teams, maintenance managers and technical managers.
What Is a Transmission Chain?

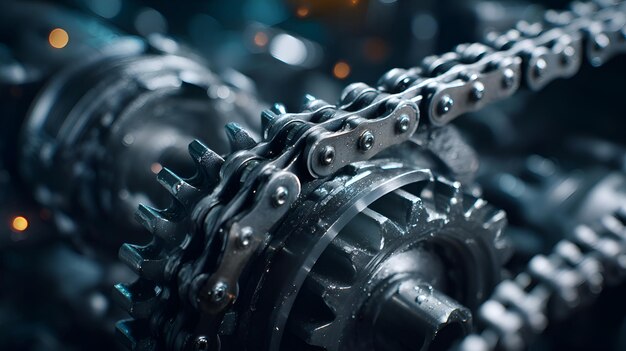

A transmission chain is a mechanical power transmission element used to positively transfer rotary motion and torque from one shaft to another. Unlike belt-pulley systems, the risk of slippage is low. This makes it the preferred choice for machines that require synchronous and reliable power transmission. The system typically consists of three main components: the chain, the sprocket and the lubrication-tensioning arrangement. All three must be selected correctly together; a quality chain will not deliver the expected service life with an incorrect sprocket or insufficient lubrication.
Why Are There Multiple Chain Types?
Not every machine operates under the same conditions. Some lines run at high speed, while others run at low speed but carry high torque. In some environments dust and shock loads dominate, while in others moisture, chemical contact or hygiene rules are the determining factor. For this reason, transmission chains cannot be assessed with a one-size-fits-all approach. Chain types are essentially differentiated according to the following variables:
- The amount of power and torque to be transmitted
- Operating speed and number of cycles
- Shock loads and sudden load changes
- Dusty, damp or chemical environments
- Food and hygiene requirements
- Noise level expectations
- Long centre distance or special geometry requirements
- Special connection, conveying or attachment requirements

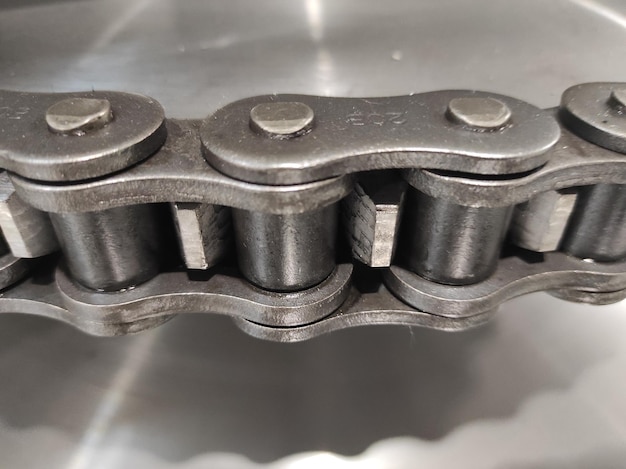

1. Standard Roller Chains
The most common type of transmission chain in industry is the standard roller chain. Because it is manufactured to dimensions compliant with ANSI or DIN/ISO standards, both product availability is high and sprocket compatibility is easier to achieve. It is usually the first option considered for general-purpose power transmission.
Standard roller chains are widely used at gearbox outputs, in small and medium-sized conveyor drives, in packaging machines, in agricultural equipment and on automation lines. Their advantage is a good cost-performance balance. With correct lubrication and alignment, they provide a long service life. Their disadvantage is that they are not the ideal solution in every condition. Where there is a corrosive environment, high shock loads or hygiene requirements, a standard carbon steel chain may quickly prove inadequate.
2. Duplex and Multiplex Chains
Duplex or multiplex chains are preferred when higher power transmission is required at the same pitch. The construction logic is similar to a standard roller chain; however, since the number of parallel rows increases, the load is distributed over a wider area. These solutions offer an advantage particularly in machines that require higher carrying capacity within a compact design.
Duplex chains stand out in heavy-duty drive applications, high-torque gearbox outputs, and systems where the service life of a single-row chain proves insufficient. However, the key point here is not simply enlarging the chain. Shaft bearing, gear precision and alignment quality must also be suitable. Otherwise, even though the number of rows has increased, the load may not be distributed evenly and the expected service life will not be achieved.
3. Heavy-Duty Chains
In plants where shock loads are high, operating conditions are harsh, or maintenance is carried out irregularly, heavy-duty transmission chains produce safer results. In this type of chain, the pins, bushes and plates are often manufactured from more durable materials or put through advanced heat treatment processes. As a result, wear resistance and fatigue strength increase.
Heavy-duty chains play a critical role in mining, iron and steel, heavy manufacturing, stone crushing, timber processing and other high-impact production environments. The initial investment cost may be higher than that of a standard chain; however, when the cost of unplanned downtime is taken into account, it often proves more economical. Especially on lines subject to sudden loading, the chain should be evaluated according to actual field conditions rather than catalogue values alone.
4. Silent Chains
Silent chains stand out in applications where noise levels need to be kept under control. In these chains, the tooth profile and link structure differ from a classic roller chain. As engagement is smoother, vibration and noise levels are reduced. This is the main reason they are preferred in certain high-speed drive systems.
Silent chains are used in the automotive industry, printing machines, precision manufacturing equipment and special mechanical systems where low noise is required. That said, they should not be chosen automatically for every application. If the gear geometry, operating speed and system design are not correct, the expected benefit of a silent chain cannot be fully realised. Here, application engineering is just as decisive as the product itself.
5. Stainless Steel Transmission Chains
Stainless steel chains stand out on lines exposed to moisture, wash-down or chemical effects. Since corrosion resistance is critical, particularly in food processing, beverage filling, pharmaceuticals, packaging and certain chemical processes, the use of stainless steel chain becomes unavoidable. These chains not only resist rusting but also offer an advantage in terms of product safety and hygiene management.
The key point to note here is that stainless chain selection should not be made solely on a “won't rust” basis. The stainless grade, ambient chemicals, washing frequency, temperature and mechanical load must all be assessed together. If the wrong stainless grade is selected, the material may resist corrosion while remaining mechanically weak.
6. Self-Lubricating and Maintenance-Free Types
In applications where lubrication is difficult or oil contamination is undesirable, self-lubricating chains offer a significant advantage. These types may use special bush materials, oil-impregnated structures or surface solutions that reduce maintenance needs. These products are frequently considered for paper, packaging, textile and lines requiring clean operation.
Even so, the term “maintenance-free” does not mean that no checks are required. Tension, alignment and general wear must always be checked. When the right product is chosen, lubrication intervals are reduced; however, system inspection is never eliminated entirely.
7. Double-Pitch Chains
Double-pitch chains offer an economical solution for systems requiring long centre distances and operating under relatively low speed and load conditions. As the pitch is larger, fewer components are used over the same chain length. This creates a cost advantage, particularly in certain conveying and transmission systems.
Double-pitch chains are commonly found in both transmission and light conveyor applications. However, where high impact or high speed is involved, a comparison with standard or heavy-duty alternatives is necessary. Correctly understanding the application limits is important.
8. Special Attachment and Project-Specific Chains
Standard chains do not meet every need. In some machines, the chain is required not only to transmit power but also to push, carry, provide synchronisation or hold the product. This is where special attachment chains come in. The chain can be tailored to the system with different lugs, shoes, carrier extensions, guides or connecting elements.
Project-specific chain solutions are important for OEM manufacturers and businesses looking to optimise their existing line. Working with the right manufacturer delivers not just a product made to size, but a solution developed for the operating conditions. This approach makes a significant difference, particularly in systems experiencing recurring failures.
Which Chain Is More Suitable Where?
Taking a general view, standard roller chains are sufficient for low- and medium-level general power transmission. If higher power is required within the same system volume, duplex chains should be considered. Where impact loads and demanding site conditions apply, heavy-duty products stand out. Stainless chain is preferred where hygiene and corrosion resistance are required. Where noise is critical, silent chains should be considered; where lubrication is restricted, self-lubricating designs; and where a special function is needed, attachment chain solutions should be evaluated.
However, this table alone is not sufficient for making a decision, because applications differ even within the same sector. For example, a food facility's washdown area may require a stainless steel chain, while a standard chain may be sufficient in a dry area. Similarly, a silent chain may be more suitable at one point on an automation line, while a heavy-duty product may be the right choice at another.
When Choosing a Chain Type, Look at the System, Not Just the Product
Transmission chain performance is determined not only by the chain itself. The following factors have a direct impact:
- Sprocket tooth form and manufacturing quality
- Shaft parallelism and alignment accuracy
- Tension adjustment
- Lubrication method and oil selection
- Shock load level
- Ambient operating temperature and contamination level
- Frequency of maintenance staff inspections
A common mistake on site is removing the old chain and fitting a new one to size, assuming the problem is solved. However, if the sprockets are worn or the system is misaligned, the new chain will also fail in a short time. For this reason, transmission chain selection should be made together with a system assessment.
The Importance of Supplier and Manufacturer Support
Catalogue information alone may not be enough when deciding on the right chain type. A reliable manufacturer or technical supplier should provide guidance by asking about the application, load characteristics, speed data, environmental conditions and maintenance habits. This approach takes the purchasing decision beyond price alone and reduces the total cost of ownership.
A good technical partner can, where necessary, recommend a custom size, special material, heat treatment, coating or attachment solution. Sprocket matching, chain length and installation recommendations are also important for long service life. Companies that offer local and accessible support in particular provide businesses with a serious advantage in achieving a fast solution in the event of a breakdown.
Conclusion
Transmission chain types are product groups that may look similar to one another at first glance in industry, but differ significantly in operating principle and performance. Standard roller chain, duplex chain, heavy-duty chain, silent chain, stainless steel chain and project-specific chain with attachments each meet different needs. Making the right choice requires looking not only at size information, but also at load, speed, environmental conditions, maintenance capability and sprocket compatibility together.
For businesses, choosing the right chain means a longer service life, lower maintenance costs and fewer unplanned stoppages. For this reason, when purchasing a transmission chain, not only the product but also the quality of technical support and application experience should be evaluated. Working with a manufacturer focused on industrial solutions, such as Gurur Makina, provides a significant advantage in achieving results that are both suitable for the application and sustainable, beyond standard product supply.
