In industrial facilities, the reliability of power transmission systems depends directly on the quality of the chain and sprocket components used. A conveyor line stopping, a transmission system failing, or a lift chain breaking means production loss, safety risk and serious cost increases. For this reason quality control processes in chain and sprocket supply, is not merely a purchasing formality, but a guarantee of operational continuity.
In this article, we will examine the stages that make up quality control in industrial chain and sprocket supply, the inspection and testing methods applied, how certification processes work, and how to carry out proper supplier evaluation.
Why Is Quality Control a Critical Process?
Chain and sprocket systems are parts that operate under continuous load in heavy-duty working conditions. A chain's breaking strength, a sprocket's wear resistance, or a bearing's service life vary according to how strictly quality control procedures are applied during production. A part that has not passed quality control or has been inadequately tested can cause unexpected failure in the field.
The key reasons why quality control is critical are as follows:
- Safety: Industrial chains directly affect the safety of personnel and equipment. A chain that has passed through inadequate quality control can snap under heavy load, creating a threat to life safety.
- Operational Continuity: Unplanned downtime leads to production losses and delivery delays. Quality components ensure smooth operation until scheduled maintenance windows.
- Total Cost of Ownership: A cheap but low-quality part ends up costing far more in the long run due to frequent failures and the need for early replacement.
- Legal Compliance: Occupational safety legislation and industry standards mandate certain quality levels. Using components that fail to meet these standards creates legal liability.
Quality control is a systematic process that minimises these risks and ensures quality assurance throughout the supply chain.
Pre-Procurement Quality Control Stages
The quality control process begins long before the product reaches you. Selecting the right supplier, preparing technical specifications and sample approval processes are the cornerstones of pre-procurement quality control.
Supplier Quality History and Assessment
Before selecting a supplier, reviewing that supplier's quality history is a critical step. You should be informed about which sectors they have served before, which standards their production complies with, and the quality of their customer references. Supply security and risk management in chain and gear procurement as we discussed in detail, the supplier's financial stability and production capacity should also be assessed.
Points to consider when assessing suppliers:
- Certification status: The validity and scope of management system certifications such as ISO 9001 and ISO 14001
- Industry references: Suppliers with experience in the same industrial field understand sector-specific requirements better
- Production infrastructure: The presence of an in-house quality control laboratory, test equipment and qualified personnel
- Traceability: The ability to trace production batches retrospectively and the maintenance of quality records
- Corrective action capacity: The ability to provide rapid root cause analysis and corrective action for quality issues
Defining Technical Specifications and Requirements
The most important step before procurement is defining the requirement clearly and measurably. Ambiguous specifications lead to incorrect product procurement and quality issues. Preparing technical specifications for industrial chain and gear procurement we previously covered the details of preparing specifications.
Quality requirements that should be included in the technical specification:
- Material specification: The steel grade to be used (e.g. 40Mn, 45Mn, 30CrNiMo8), hardness values and surface treatment requirements
- Dimensional tolerances: Chain pitch, gear module, bore diameters and surface flatness tolerances
- Load test requirements: Minimum breaking load, yield strength and fatigue strength values
- Surface quality: Roughness tolerance, coating thickness and corrosion resistance
- Inspection and test plan: Which tests are to be performed, acceptance criteria and inspection frequency
Sample Approval Process
Sample approval prior to serial production is one of the most critical stages of quality control. The sample is the prototype of serial production, and serial production must not commence until it has been verified to meet all quality requirements.
Steps to be followed in the sample approval process:
- Sample request: Requesting a sample from the supplier in accordance with the technical specification
- Incoming inspection: Carrying out dimensional, appearance and identity checks on the sample
- Performance testing: Subjecting the sample to load, fatigue and wear tests
- Document review: Checking the material certificate, test reports and conformity certificates
- Approval or rejection: Comparing the results against the specification requirements and granting serial production approval
Quality Control During Supply
While the supply process is under way, quality control consists of two basic stages: incoming inspection and in-process quality monitoring.
Incoming Inspection and Acceptance Criteria
Incoming inspection is the quality control carried out on supplied products before they are accepted into the warehouse. This stage is the most important barrier preventing defective products from entering the production line.
Control methods applied during incoming inspection:
- Visual inspection: Checking for surface defects, cracks, rust stains and deformation
- Dimensional control: Pitch measurement, gear module control, bore diameter and outer diameter measurements
- Hardness testing: Verifying material hardness by Rockwell or Brinell hardness measurement
- Material certificate check: Verification of EN 10204 3.1 or 3.2 certificates
- Traceability control: Ability to trace the batch back to its production date, raw material source and test results
In-Process Quality Monitoring and Reporting
In a serial supply process, a one-off incoming inspection is not sufficient. Quality consistency must be monitored throughout production. This is achieved through statistical process control methods and regular quality reporting.
In-process quality monitoring methods:
- Batch-based testing: Taking and testing samples from each production batch
- Statistical process control: Recording measurement results on control charts and carrying out trend analysis
- Corrective action tracking: Carrying out root cause analysis and corrective action processes when deviations are detected
- Regular quality reporting: Submission of quality performance reports by the supplier on a monthly or quarterly basis
Inspection and Testing Methods
The inspection and testing methods used in chain and sprocket quality control are determined according to the product's operating conditions. Each test method evaluates a different performance characteristic of the component.
Dimensional Inspection
Dimensional inspection is the control of the geometric accuracy of chains and sprockets. Incorrect dimensions cause assembly problems, uneven wear and premature failures.
Dimensional inspection parameters:
- Chain pitch measurement: Checking whether the distance between connection points is within tolerance
- Sprocket module and tooth profile: Compliance of sprocket geometry with standards and specifications
- Bore diameter and hub tolerances: Critical dimensions affecting assembly fit
- Surface flatness and parallelism: Smoothness and alignment accuracy of sprocket surfaces

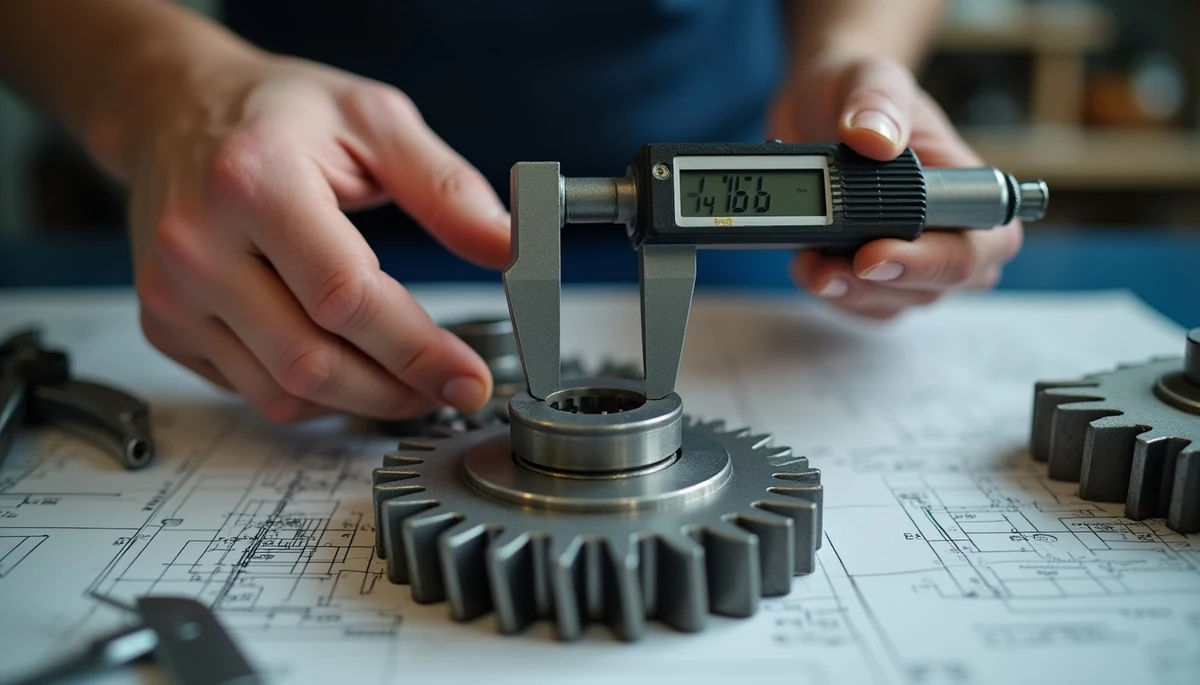

These measurements are carried out using digital micrometres, CMM (Coordinate Measuring Machine) and optical measurement systems.
Mechanical Tests
Mechanical tests verify the performance of chains and sprockets under load. On chain and sprocket load calculation the calculation methods we cover are verified in the field through these tests.
Basic mechanical tests:

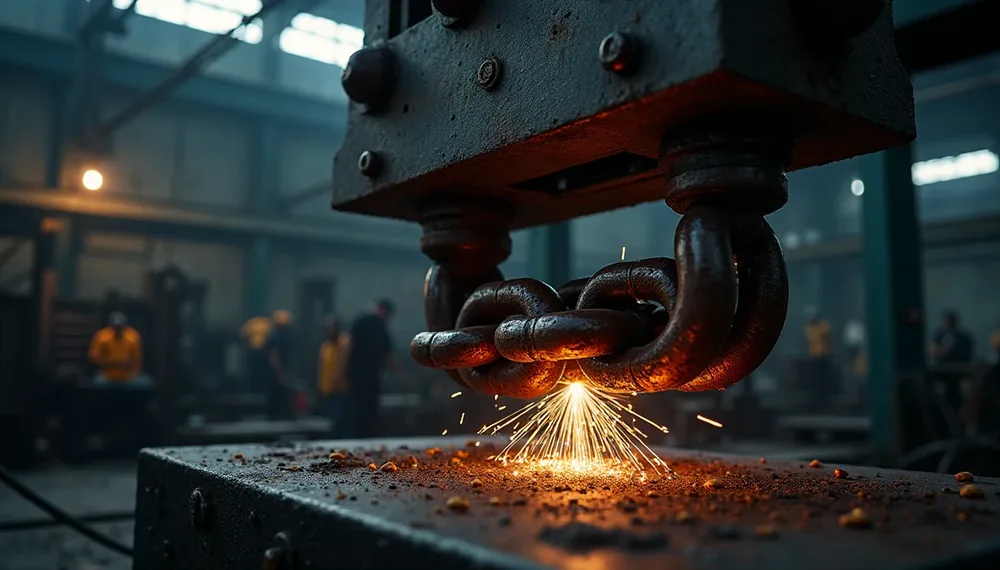

- Tensile test: Determining whether the chain reaches the minimum breaking load
- Yield test: Measuring the maximum load the material can bear without permanent deformation
- Fatigue test: Estimating the component's service life under specific load cycles
- Hardness testing: Measuring material hardness using the Rockwell, Brinell or Vickers methods
- Wear test: Evaluating the material's resistance under friction conditions
Non-Destructive Inspection Methods
Non-destructive testing (NDT) refers to inspection methods carried out without rendering the product unusable. It is widely used, particularly in critical applications and serial production quality control.
Commonly used NDT methods:
- Magnetic particle inspection (MPI): Effective in detecting surface and subsurface cracks. Applied to ferromagnetic materials.
- Liquid penetrant inspection: Used to detect surface cracks, porosity and other discontinuities. Can also be applied to non-magnetic materials.
- Ultrasonic inspection: Used to detect internal defects, voids and thickness reduction. An effective method for thick-section parts.
- Radiographic inspection: Used to visualise internal structural defects. Applied to critical cast parts and welded joints.
The choice of non-destructive testing method is made according to the part's material, geometry and the type of defect sought. For critical safety components, it is recommended that at least two different NDT methods be applied together.
Surface Inspection and Coating Control
The surface quality of chains and sprockets directly affects both corrosion resistance and wear behaviour. Surface inspection is carried out using visual examination and microstructural analysis methods.
Surface inspection criteria:
- Roughness measurement: Ra and Rz values meeting specification requirements
- Coating thickness: Measuring the thickness of galvanising, nickel plating or other surface treatments
- Coating adhesion: Testing the adhesion strength of the coating to the substrate
- Corrosion resistance: Evaluation using salt spray testing or similar accelerated corrosion tests
Certification and Standards
In chain and sprocket quality control, certification is the documentation of compliance with international and national standards. Without certification, quality assurance remains incomplete.
International Standards and Compliance
The main international standards referenced in chain and sprocket manufacturing:
- ISO 606: Dimension and strength requirements for short-pitch transmission chains
- ISO 1275: Standards for double-pitch chains
- ISO 4347: Dimensions and mechanical properties for conveyor chains
- ISO 1082: Requirements for mining chains
- DIN 8187 and DIN 8188: Transmission chain specifications under German standards
- ANSI/ASME B29: Chain and sprocket requirements under American standards
Compliance with these standards is independent verification that the product meets specific quality levels.
Material Certificate and 3.1/3.2 Documents
Under the EN 10204 standard, material certificates are official records provided by the manufacturer that document the chemical composition and mechanical properties of the material.
Certificate types and their meanings:
- 3.1 Certificate: A certificate issued within the manufacturer's own quality system and approved by its quality department. It is not verified by an independent body.
- 3.2 Certificate: A certificate jointly approved by the manufacturer's quality department and an independent inspector or customer representative. It provides a higher level of assurance.
- 2.2 Certificate: A document provided by the manufacturer based solely on its own internal control results. Acceptable for non-critical applications.
Requesting a 3.2 certificate for critical applications significantly increases quality assurance.
Factory Acceptance Test (FAT)
The Factory Acceptance Test (FAT) is the final quality control carried out at the supplier's facility in the presence of the customer. FAT is standard practice, particularly for large-scale and critical systems.
Components of the FAT process:
- Test procedure: Predefining which tests will be carried out, along with the acceptance criteria and test conditions
- Witness inspection: The customer or the customer's representative personally attending the tests and approving the results
- Test reporting: Recording and signing off the results of each test step
- Deviation management: Recording deviations identified during testing, determining corrective actions and carrying out the retesting process
FAT does not only verify that the product meets the technical requirements; it also allows the supplier's production infrastructure and quality culture to be seen first-hand.
Monitoring Supplier Quality Performance
Quality control continues even after the product has been received. Continuous monitoring of the supplier's quality performance is the foundation of long-term collaboration.
Quality Performance Indicators (KPIs)
Key indicators used to measure supplier quality performance:
- PPM (Parts Per Million): The number of defective parts per one million parts. A low PPM value indicates a high level of quality.
- First-time acceptance rate: The proportion of batches accepted at the first check during incoming inspection. A high rate indicates consistent quality.
- Corrective action closure time: The time it takes to close corrective action requests raised for quality issues. A short time indicates a fast response capability.
- Warranty return rate: The ratio of products returned under warranty to total deliveries. A low rate indicates product reliability.
- On-time delivery performance: Quality and delivery reliability should be assessed together. Late deliveries have a negative impact on production planning.
Regular monitoring of these indicators ensures that supplier performance is evaluated objectively.
Periodic Audit and Evaluation
Supplier quality audits should be carried out at regular intervals, not only when a problem arises. Periodic audits enable the early detection of potential issues and the implementation of preventive actions.
Areas assessed within the scope of the audit:
- Production process control: The effectiveness of quality control points from raw material intake through to product output
- Calibration of measuring equipment: The currency of calibration records for test and measuring devices
- Personnel competence: The training and certification status of quality control personnel
- Record-keeping and traceability: The organisation of production records, test reports and traceability documents
- Corrective and preventive action system: Whether the CAPA process is operating effectively
Supplier audit results are used to update the supplier evaluation score and to inform future sourcing decisions.
Digital Quality Control Solutions
Industry 4.0 transformation is also digitalising chain and gear quality control processes. Digital solutions enable quality data to be monitored in real time, analysed and integrated into decision support systems.
IoT-Based Quality Monitoring
Internet of Things (IoT) sensors enable continuous monitoring of quality parameters during production and use. Vibration, temperature, tension and wear data can be collected in real time to enable anomaly detection. This data forms the basis of the predictive maintenance approaches we discuss regarding wear analysis and life estimation in chain and gear systems .
Traceability with Barcode and RFID
Marking each production batch with a barcode or RFID tag ensures traceability. This makes it possible to quickly identify the relevant batch and, if necessary, recall it whenever a quality issue is detected in the field. Traceability shows that quality control is not limited to the production stage alone, but covers the product's entire life cycle.
AI-Assisted Quality Analysis
Machine learning algorithms are being used increasingly in the analysis of quality control data. These systems, which learn from historical quality data, can detect potential quality deviations in advance and suggest preventive actions. They are a particularly effective tool for catching patterns in large data sets that the human eye might miss.
Quality Control Requirements by Industrial Sector
Different industrial sectors have different requirements for chain and gear quality control. Operating conditions, safety requirements and regulatory frameworks vary by sector.
Food and Pharmaceutical Sector
Chains and gears used in the food and pharmaceutical sector must meet food-contact requirements. Food safety certifications, stainless steel requirements and hygienic design rules stand out in this sector. FDA compliance, EHEDG guidelines and food safety certifications are among the basic requirements.
Mining and Heavy Industry
Chains used in the mining sector must withstand extreme load and wear conditions. Quality control in this sector focuses particularly on breaking strength, wear resistance and fatigue life tests. Forklift chain and similar heavy-load applications require a critical breaking safety factor.
Automotive and Transportation
In the automotive sector, the IATF 16949 quality management system standard is the fundamental reference for chain and gear supply. This standard defines requirements for error prevention, statistical process control and continuous improvement through a process approach. The PPAP (Production Part Approval Process) is the standard method for quality approval in automotive supply.
Elevators and Lifting Systems
Elevator chains and components used in lifting systems have high safety requirements. The EN 81 standard and similar regulations define the quality control requirements in this sector. One hundred percent testing of every batch and certification by independent inspection bodies is a common practice.
For further information on industry standards as external sources, see the official ISO website and OSHA guidelines may be referred to.
Conclusion
Quality control in chain and gear supply cannot be considered separately from the product itself. Pre-supply assessment, sample approval, incoming inspection, in-process monitoring, certification and periodic auditing are complementary links in this process. If any one link is missing or weak, it puts the entire quality assurance at risk.
