Chain sprocket material selection is one of the most critical decisions that directly determines the performance, service life and reliability of industrial power transmission systems. The material from which the chain and sprocket used in a transmission system are made shapes the load the system can carry, the environmental conditions it can withstand and the total cost of ownership. In this guide, we will cover in detail chain sprocket material selection all the technical and economic criteria to be considered during the process.
Why Is Chain Sprocket Material Selection Important?
Chain-and-sprocket mechanisms used in industrial facilities, conveyor systems, agricultural machinery and automotive applications form the backbone of power transmission. Incorrect material selection can lead to excessive wear, unexpected failures, unplanned downtime and serious safety risks. Chain sprocket material selection, is not just a matter of initial cost; it is also a strategic decision in terms of operating costs, maintenance frequency and system reliability.
When the correct material is selected, the chain-and-sprocket system can comfortably reach, or even exceed, its design life. However, an incorrect choice leads to problems such as deformation, breakage or corrosion within a short time. For this reason, industrial chain supplier selection criteria must be applied, material selection must be carried out with just as much care.

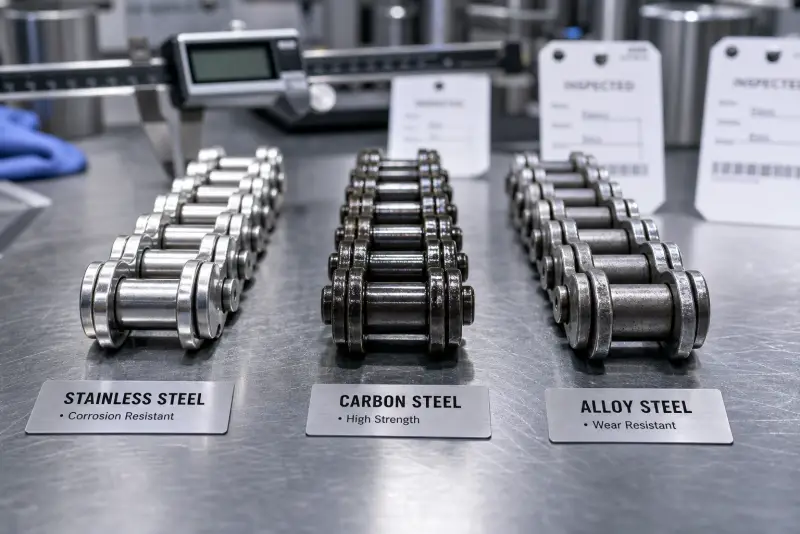

Main Material Groups Used in Chain and Sprocket Manufacturing
Materials used in chain and sprocket manufacturing fall into three main groups in terms of their chemical composition and mechanical properties. Each material group has its own distinct advantages, limitations and ideal application areas.
Carbon Steel
Carbon steel is the most widely used material in chain and sprocket manufacturing. Low-carbon (AISI 1020), medium-carbon (AISI 1045) and high-carbon steels are selected according to different hardness and durability requirements. Carbon steel offers a good strength-to-cost balance and delivers sufficient performance for standard industrial applications.
Advantages:
- Cost-effective and widely available
- Good machinability and weldability
- Hardness and durability can be increased through heat treatment
- Sufficient performance for standard transmission applications
Disadvantages:
- Rapid oxidation in damp and corrosive environments
- Low corrosion resistance; protective coating required
- Risk of plastic deformation under excessive load
Stainless Steel
Stainless steel, particularly grades AISI 304 and AISI 316, is the primary material of choice in environments requiring corrosion resistance. In sectors such as food processing, the chemical industry, shipping and pharmaceutical manufacturing, stainless steel is essential for applications where chain and sprocket systems operate under constant exposure to moisture or chemicals. Chain and sprocket wear analysis data, the corrosion-related wear rate of stainless steel chains is 60-80% lower than that of carbon steel.
Advantages:
- Excellent corrosion resistance (particularly AISI 316)
- Standard for food and hygiene applications
- Low maintenance cost and long service life
- Stable mechanical properties across a wide temperature range
Disadvantages:
- 2-4 times higher cost than carbon steel
- Tendency to wear due to low coefficient of friction
- Limited improvement through hardening processes
- Strength limitations in high-load applications
Alloy Steel
Alloy steels are special materials obtained by adding elements such as chromium, nickel, molybdenum and vanadium to carbon steel. Grades such as AISI 4140, AISI 4340 and AISI 8620 are used in applications that require high load-bearing capacity and impact resistance. Chain sprocket material selection processes, alloy steels stand out under heavy-duty conditions.
Advantages:
- High tensile strength and impact resistance
- Excellent hardness profile through heat treatment
- Wear resistance can be improved
- Ideal for heavy-duty and high-speed applications
Disadvantages:
- Higher cost than carbon steel
- Weldability requires special attention
- Heat treatment parameters require precision
- Lead times may be longer
Factors Affecting Chain Sprocket Material Selection
Material selection cannot be based on a single parameter. Many factors must be evaluated together, from system design to the operating environment, and from load conditions to the maintenance budget.
Operating Environment and Corrosion Resistance
Material selection should be made according to the environment in which the chain and sprocket system will operate. While carbon steel is sufficient in dry, enclosed areas, stainless steel or specially coated materials should be preferred in humid, acidic or salty environments. Hygiene standards in food processing plants, chemical resistance in the chemical industry, and salt water resistance in marine applications are the priority criteria.
Load Capacity and Impact Resistance
Static and dynamic load calculations play a decisive role in material selection. Chain and sprocket load calculation processes, peak loads and impact loads must be taken into account in addition to the average operating load. Alloy steels are particularly advantageous in applications that require impact resistance.
Speed and Coefficient of Friction
In chain-sprocket systems operating at high speed, friction-induced heat generation and wear rates directly affect material selection. Although the low coefficient of friction of stainless steels may seem like an advantage in some applications, it can actually cause insufficient engagement in chain-sprocket meshing. In this case, surface hardening or special coatings may be required.
Temperature Conditions
In low-temperature applications (cold storage facilities, freezing plants), the material's fracture toughness becomes critical. In high-temperature applications (furnace conveyors, metallurgical plants), creep resistance and oxidation resistance take priority. Alloy steels deliver superior performance compared to carbon steel under both extreme conditions.
Ease of Maintenance and Lubrication
In systems where access to lubrication is limited, self-lubricating materials or special surface treatments may be preferred. Industrial chain lubrication and maintenance guide it should not be forgotten that material selection directly affects lubrication frequency and maintenance intervals.
Heat Treatment and Surface Treatments: Enhancing Material Performance
Material selection alone is not enough; the correct heat treatment and surface treatments fully unlock the potential of the chosen material. Chain sprocket material selection it is essential to also evaluate the heat treatment options.
Hardening and Tempering
The hardening-tempering process applied to carbon and alloy steels increases the surface hardness of the material while preserving core toughness. Hardness values of 58-62 HRC are targeted for gear teeth, while a range of 55-60 HRC is preferred for chain pins and rollers. Heat treatment depth and tempering temperature should be optimised according to the load conditions of the application.
Induction Hardening
High-frequency induction hardening allows only the surfaces of the gear teeth to be hardened. This method increases tooth wear resistance while preserving core toughness, optimising impact resistance. It is a method particularly preferred for large gears and chain sprockets with special profiles.
Carbonitriding and Nitriding
Carbonitriding and nitriding, which are surface hardening processes, enable high surface hardness to be achieved even in low-carbon steels. These processes significantly increase surface wear resistance on chain pins and gear tooth surfaces, while minimising the risk of low-temperature brittle fracture.
Galvanised Coating
Hot-dip galvanising is the most economical way to increase the corrosion resistance of carbon steel. Galvanised chains are widely used in outdoor applications, agricultural machinery and humid environments. However, it should be noted that galvanising can cause a change in tolerance on gear tooth profiles.
Material Comparison Table
The table below presents a comparison of the key properties of the three main material groups in industrial chain and sprocket applications:
| Feature | Carbon Steel | Stainless Steel (304/316) | Alloy Steel (4140/4340) |
|---|---|---|---|
| Tensile Strength | 500-700 MPa | 500-750 MPa | 800-1200 MPa |
| Corrosion Resistance | Low | Excellent | Medium |
| Wear Resistance | Good (after heat treatment) | Medium | Good-Very Good |
| Impact Resistance | Good | Medium | Excellent |
| Cost (Relative) | Low (1x) | High (2-4x) | Medium (1.5-2.5x) |
| Temperature Resistance | -20°C to 200°C | -50°C to 400°C | -40°C to 300°C |
| Weldability | Good | Medium | Special procedure |
| Ideal Application | General industrial | Food, chemical, maritime | Heavy-duty, high load |
Material Selection in Sector-Specific Applications
Food and Pharmaceutical Industry
In food processing and pharmaceutical manufacturing facilities, hygiene standards and cleanability requirements necessitate the use of stainless steel (AISI 304/316). In these sectors, food contact acceptability (FDA compliance) of chain and gear materials, surface roughness and ease of cleaning are the priority selection criteria. Chain applications in the food sector make stainless steel almost the only option.
Automotive and Motorcycle
In automotive transmission chains, high speed, impact load and compact design requirements are considered together. Alloy steels are used in these applications, supported by heat treatment and surface hardening. Motorcycle chains are specifically manufactured with O-ring and X-ring sealed designs and supported by surface treatments.
Agricultural and Construction Machinery
Chain and gear systems used in agricultural machinery face dust, moisture, impact loads and long maintenance intervals. Galvanised carbon steel or specially coated alloy steels are preferred in these applications. Chain applications in the agricultural sector, prioritise durability and ease of maintenance in material selection.
Logistics and Conveyor Systems
Conveyor systems in warehouses and distribution centres have continuous operation and medium-to-high load-carrying requirements. In these applications, carbon steel chains are widely preferred for their cost-effectiveness and adequate performance. Conveyor chains material selection is governed by the operating environment and load conditions.
Common Mistakes in Chain and Gear Material Selection
1. Focusing Only on Initial Cost
The most common mistake is basing material selection solely on purchase price. Although the initial cost of stainless steel is 2-4 times higher than carbon steel, when maintenance and replacement costs in corrosive environments are taken into account, the total cost of ownership (TCO) can be far more advantageous. IWIS chain technology guide, total life cycle cost can be reduced by up to 40% with the right material selection.
2. Ignoring Heat Treatment Options
Even if the correct material is selected, performance expectations cannot be met without proper heat treatment. Parameters such as hardening depth, tempering temperature and cooling rate directly affect the final mechanical properties.
3. Inadequately Assessing Environmental Conditions
Failure to fully analyse environmental factors such as humidity, temperature, chemical exposure and dust leads to premature failures. The effects of seasonal changes and sudden temperature differences, in particular, are often overlooked.
4. Chain and Sprocket Material Mismatch
When the chain and sprocket are manufactured from different materials, issues such as galvanic corrosion and asymmetric wear can occur. Renold chain technology resourcesAs stated there, the selection of compatible material pairs significantly affects the system's lifespan.
Step-by-Step Guide to Chain Sprocket Material Selection
Follow these steps to select the right material:
- Define the application requirements: Determine the load type, speed, operating environment, expected service life and safety factor.
- Analyse the environmental conditions: Assess the temperature range, humidity level, chemical exposure and dust level.
- Carry out load calculations: Calculate the static load, dynamic load, shock load and safety factor.
- Compare material alternatives: Evaluate the options against strength, corrosion resistance, wear resistance and cost criteria.
- Determine the heat treatment requirements: Check whether the selected material can be improved through heat treatment.
- Calculate the total cost of ownership: Include purchasing, installation, maintenance, failure and replacement costs in the total cost.
- Seek expert advice: For complex applications, request technical support from an experienced supplier.
Future Material Technologies
In the industrial chain and sprocket sector, material technologies are advancing continually. Nano-composite coatings, ceramic-reinforced steels and surface modification technologies are extending the performance limits of traditional materials. In particular, PVD (Physical Vapour Deposition) and CVD (Chemical Vapour Deposition) coatings multiply wear resistance, while self-lubricating coatings reduce maintenance requirements.
3D printing (additive manufacturing) technology has also begun to be used in the production of prototype chains and sprockets. However, traditional materials and manufacturing methods still dominate mass production applications. In the future, smart chain systems integrated with industrial IoT sensors will monitor material fatigue in real time, enabling predictive maintenance.
Conclusion: The Right Material Selection Determines System Lifespan
Chain sprocket material selectionis a strategic decision that forms the backbone of industrial power transmission systems. From the economic advantages of carbon steel to the corrosion resistance of stainless steel, and from the high strength of alloy steels to the performance-enhancing effects of heat treatment and surface treatments, every option has its own correct field of application. The right material selection determines not only component cost, but also system reliability, maintenance costs and the total cost of ownership.
At Gurur Makina, drawing on our experience built up in the transmission chain industry since 1986, we provide the most suitable chain sprocket material selection technical support. With our expertise in the manufacture of lugged and custom chains, for solutions tailored to your needs please contact us.
